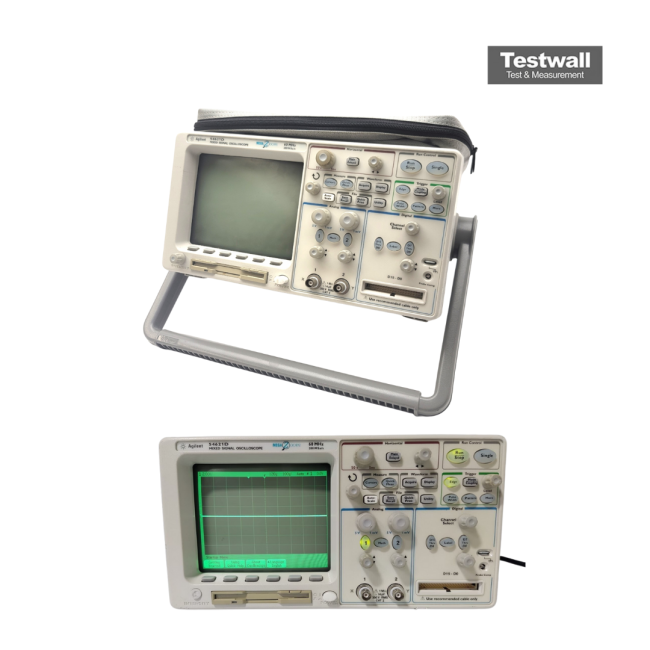

Keysight (Agilent) 54621D
| Attribute | Value |
|---|---|
| Number of Channels | 2 Analog + 16 Digital |
| Bandwidth | 60 MHz |
| Sample Rate | 200 MSa/s |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 5 ns/div to 50 s/div |
| Display | 6.5-inch color LCD |
| Digital Channel Threshold Levels | TTL, CMOS, ECL, user-defined |
| Connectivity/Interface | GPIB, RS-232, Parallel Printer Port |
Keysight Technologies 54621D Options:
- 54621D - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54621D - 1CM - Rackmount kit (same as 1186A)
- 54621D - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54621D - W32 - 3-year, customer-return calibration service
- 54621D - W34 - 3-year, customer-return standard comp cal service
- 54621D - W50 - Additional 2-year warranty (5 year total)
- 54621D - W52 - 5-year, customer-return calibration service
- 54621D - W54 - 5-year, customer-return standard comp cal service
- 54621D - ABA - Manual Option: English
- 54621D - ABJ - Manual Option: Japanese
- 54621D - AB2 - Manual Option: Simplified Chinese
| Model | 54621D |
|---|
The Keysight 54621D Mixed-Signal Oscilloscope offers 60 MHz bandwidth across 2 analog and 16 digital channels, enabling comprehensive signal and timing analysis. It features a patented high-definition display, 4 MB MegaZoom memory with 32 intensity levels, and supports advanced triggering including I²C, SPI, LIN, CAN, and USB.
This MSO enables simultaneous viewing of up to 18 signals, streamlining debugging and capturing complex signal interactions with ease and precision.
Testwall can supply the used Keysight 54621D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 54621D.
