Keysight (Agilent) 54642D
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Sample Rate | 2 GSa/s |
| Number of Analog Channels | 2 |
| Number of Digital Channels | 16 |
| Memory Depth | 4 Mpts per channel |
| Display | 8.5-inch color LCD |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
Keysight Technologies 54642D Options:
- 54642D - 003 - Shielding Option for use in severe environments or with sensitive devices under test – shields both ways (in and out): RS-03 Magnetic interface shielding added to CRT, and RE-02 display shield added to CRT to reduce radiated interference
- 54642D - 1CM - Rackmount kit (same as 1186A)
- 54642D - A6J - ANSI/NSCL Z540 calibration with test data (replaces 1BP)
- 54642D - R-50C-011-3 - 3-years of return-to-Agilent inclusive calibration service
- 54642D - R-50C-013-3 - 3-years of return-to-Agilent inclusive plus calibration service
- 54642D - R-50C-011-5 - 5-years of return-to-Agilent inclusive calibration service
- 54642D - R-50C-013-5 - 5-years of return-to-Agilent inclusive plus calibration service
- 54642D - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- 54642D - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- 54642D - ABA - Manual option: English
- 54642D - ABJ - Manual option: Japanese
- 54642D - AB2 - Manual option: Simplified Chinese
| Model | 54642D |
|---|

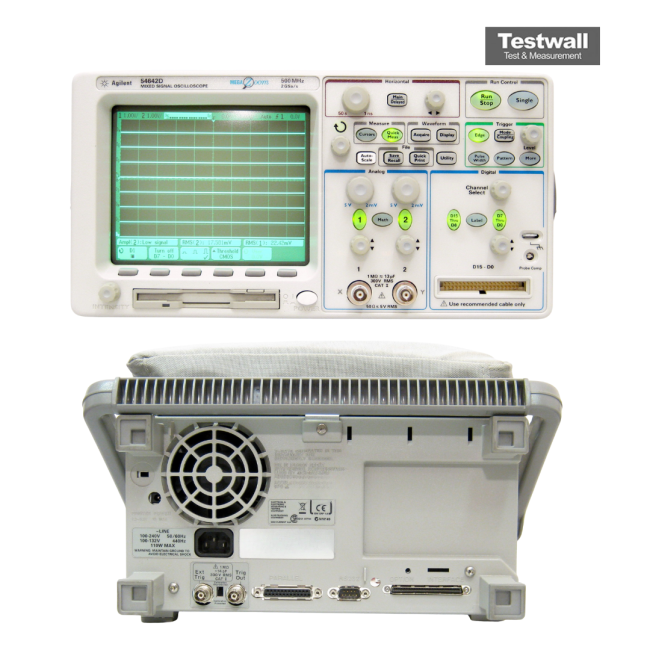

The Keysight (Agilent) 54642D is a 2+16 channel, 500 MHz Mixed-Signal Oscilloscope offering 2 analog and 16 digital channels for simultaneous signal analysis. With 2 GSa/s sampling rate and 8 MB deep memory, it captures complex timing and signal interactions with precision. The patented high-definition display enhances horizontal resolution, while versatile triggering supports I²C, SPI, LIN, CAN, and USB.
This MSO is optimized for debugging systems with clock speeds up to 100 MHz, offering multi-signal visibility and flexible connectivity including floppy, RS-232, and parallel ports.
Testwall can supply the used Keysight (Agilent) 54642D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54642D.
