Keysight (Agilent) 54753A
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Rise Time | 155 ps |
| Input Impedance | 50 Ohm |
| Maximum Input Voltage | ±2.5 V (DC + Peak AC) |
| Vertical Sensitivity Range | 10 mV/div to 200 mV/div |
| Number of Channels | 2 |
| Connector Type | SMA |
| Compatible Oscilloscope Series | Keysight Infiniium 54750A Series |
| Module Type | Plug-in Acquisition Module |
| Sample Rate | Up to 4 GSa/s (real-time) |
| Model | 54753A |
|---|

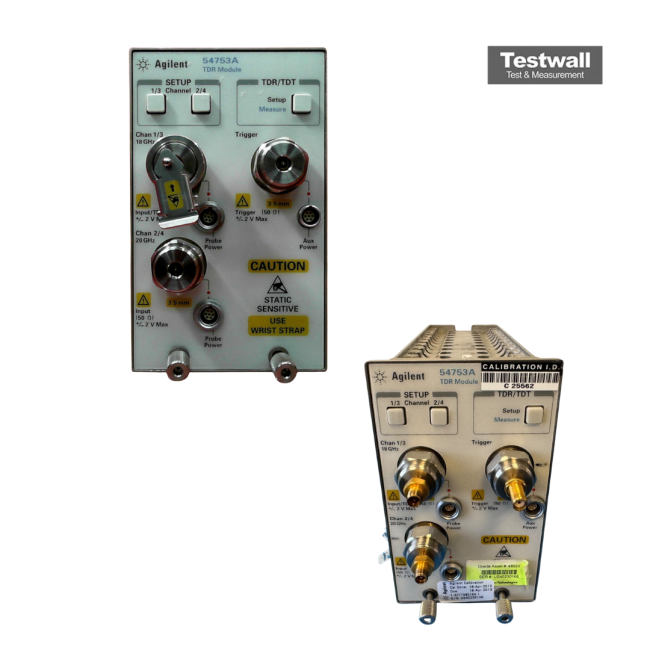

The Keysight (Agilent) 54753A is a plug-in module featuring one 20 GHz and one 18 GHz electrical channel. Designed for compatibility with 54750A, 83480A, and 86100A/B/C mainframes, it includes a built-in TDR step generator for advanced signal integrity analysis. The 18 GHz input uses a 3.5 mm male connector for high-frequency accuracy and precision measurements.
This module enables both single-ended Time Domain Transmission (TDT) and Time Domain Reflectometry (TDR) testing. Its robust configuration suits high-bandwidth signal analysis needs.
Testwall can supply the used Keysight (Agilent) 54753A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54753A.
