Keysight (Agilent) 54831B
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Sample Rate | 4 GSa/s |
| Number of Channels | 4 Analog Channels |
| Memory Depth | Up to 64 Mpts per channel |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Timebase Range | 200 ps/div to 20 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Input Impedance | 50 Ω or 1 MΩ selectable |
| Operating System | Windows XP Embedded |
| Connectivity | LAN, GPIB, USB |
Keysight Technologies 54831B Options:
- 54831B - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54831B - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54831B - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54831B - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54831B - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54831B - 001 - Add two 1165A, 10:1 passive probes
- 54831B - 002 - Add one 1162A 1:1 passive probe
- 54831B - 004 - Add four 1165A, 10:1 passive probes
- 54831B - 005 - Add one 54826-68701 logic probe kit
- 54831B - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54831B - 008 - Add one 1153A 200 MHz differential probe
- 54831B - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54831B - 012 - Add one 1156A 1.5 GHz active probe
- 54831B - 016 - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54831B - 017 - ≥20 GB removable hard disk drive
- 54831B - 006 - My Infiniium Integration Package Option (E2699A)
- 54831B - 003 - High-Speed Serial Data Analysis Software Option (N5384A)
- 54831B - 021 - Low-Speed Serial Data Analysis Software Option (N5391A)
- 54831B - 015 - EZJIT Jitter Analysis Software Option (E2681A)
- 54831B - 1CM - Add one rackmount kit (E2609B)
- 54831B - OB3 - Printed service manual
- 54831B - OBF - Printed programmer's manual
- 54831B - AB2 - Printed user's quick start guide in simplified Chinese
- 54831B - ABJ - Printed user's quick start guide in Japanese
- 54831B - A6J - ANSI Z540-compliant calibration
| Model | 54831B |
|---|

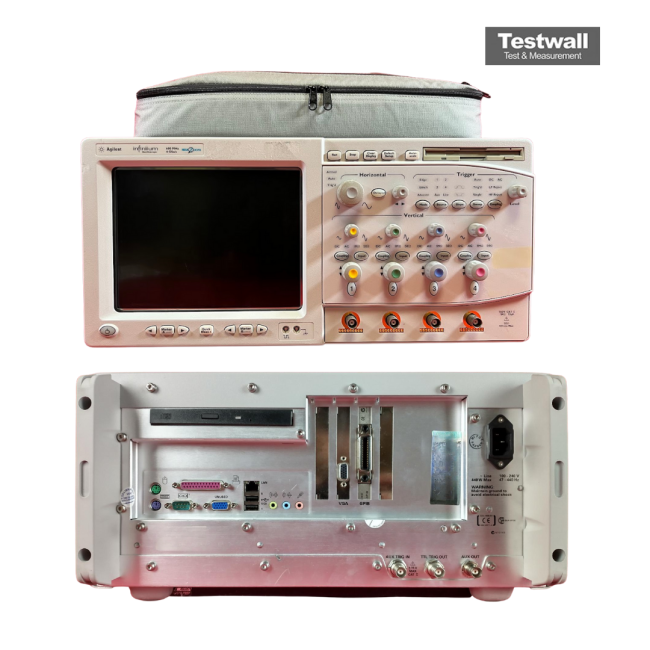

The Keysight (Agilent) Infiniium 54831B is a 600-MHz Bandwidth, 4-channel oscilloscope offering up to 4 GSa/s sampling and an optional deep memory of 128 Mpts. It includes standard 4 Mpts memory and features a Windows® GUI for an intuitive, analog-like front panel experience. It provides web-enabled remote control, email on trigger, and time correlation with compatible logic analyzers.
Ideal for advanced waveform analysis, the 54831B captures high-speed signals with speed and precision, even during extended acquisition using deep memory. Post-purchase upgrades are supported for memory enhancement.
Testwall can supply the used Keysight (Agilent) 54831B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54831B.
