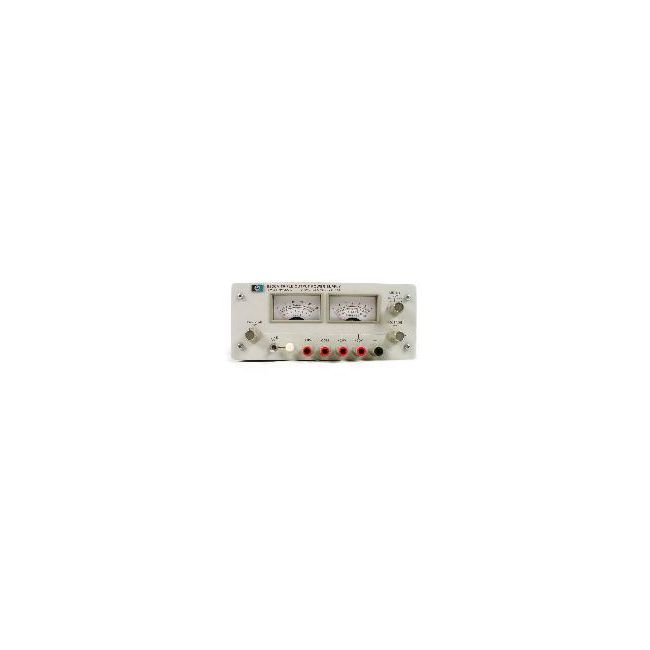

Keysight (Agilent) 6236A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to +20V / 0 to -20V (dual output) |
| Output Current Range | 0 to 0.5A per output |
| Number of Outputs | 3 (one fixed 5V/1A output, two variable outputs) |
| Fixed Output | +5V at 1A |
| Load Regulation (Voltage) | ≤ 5mV |
| Line Regulation (Voltage) | ≤ 5mV |
| Ripple and Noise | ≤ 1mV RMS (0.5mA RMS current) |
| Input Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Operating Temperature Range | 0°C to 55°C |
| Dimensions (W x H x D) | 212.7 mm x 133.4 mm x 349.3 mm (8.38 x 5.25 x 13.75 in) |
| Model | 6236A |
|---|
The Keysight (Agilent) 6236A is a benchtop DC power supply with three outputs offering 0–6V at up to 2.5A (reducing to 1A at 0V), and ±20V at 0.5A with dual tracking. It supports multiple unit combinations in parallel or series modes. Key specifications include 13W max power, load regulation of 8mV, line regulation of 15mV, and ultra-low ripple noise of 0.001µV. No overvoltage or overcurrent protection is included.
Ideal for applications requiring dual tracking and fine voltage control, the 6236A is a reliable unit despite lacking remote sensing or built-in protection features.
Testwall can supply the used Keysight (Agilent) 6236A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6236A.
