Keysight (Agilent)
Keysight (Agilent) 6236B
20V/0.5A 6V/2.5A Triple Output Power Supply
0 to +16V / 0 to -16V / 0 to +32V Output Voltage Range
0 to 1.5A / 0 to 0.75A Output Current Range
50W maximum Output Power
0.01% + 2mV Load Regulation (Voltage)
0.01% + 250µA Load Regulation (Current)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to +16V / 0 to -16V / 0 to +32V |
| Output Current Range | 0 to 1.5A / 0 to 0.75A |
| Output Power | 50W maximum |
| Load Regulation (Voltage) | 0.01% + 2mV |
| Load Regulation (Current) | 0.01% + 250µA |
| Line Regulation | 0.01% + 2mV |
| Ripple and Noise (RMS) | 500µV RMS typical |
| Programming Resolution (Voltage) | 5mV |
| Programming Resolution (Current) | 0.5mA |
| Input Power Requirements | 100/120/220/240 VAC, 48-66 Hz, 150W maximum |
| Model | 6236B |
|---|

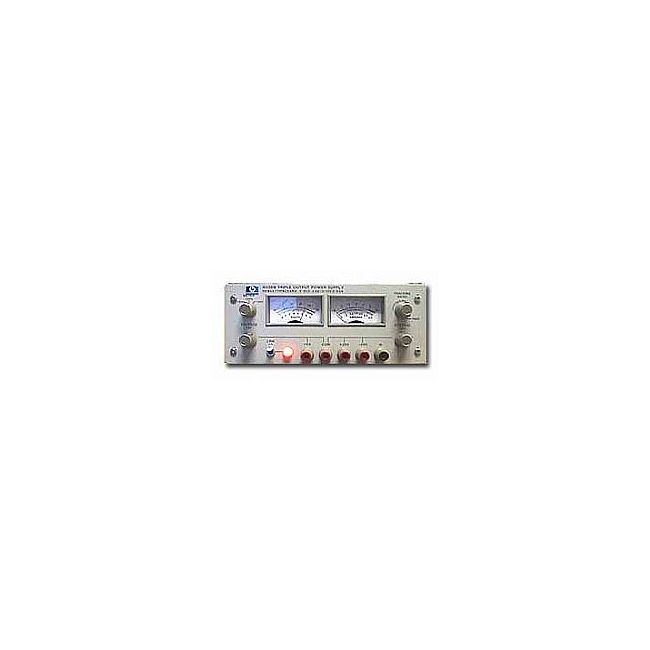

The Keysight (Agilent) 6236B is a compact benchtop DC power supply featuring three outputs: a single 0–6V output rated at 2.5A and dual tracking ±20V outputs rated at 0.5A. Designed with constant voltage and current limiting, it provides 15W of total power and supports auto range programming. Its front panel layout includes logically arranged controls, meters, and binding posts for intuitive use and monitoring.
Ideal for circuit development and lab testing, the 6236B offers stable tracking output and precise control in a compact footprint, supporting simultaneous supply of positive, negative, and low-voltage rails.
Testwall can supply the used Keysight (Agilent) 6236B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6236B.
