Keysight (Agilent)
Keysight (Agilent) 6284A
20V 3A DC Power Supply
0 to 20.475 V Output Voltage Range
0 to 5 A Output Current Range
35 W Maximum Output Power
0.01% + 2 mV Load Regulation (Voltage)
0.01% + 250 µA Load Regulation (Current)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20.475 V |
| Output Current Range | 0 to 5 A |
| Maximum Output Power | 35 W |
| Load Regulation (Voltage) | 0.01% + 2 mV |
| Load Regulation (Current) | 0.01% + 250 µA |
| Ripple and Noise (Voltage, RMS) | 350 µV |
| Ripple and Noise (Current, RMS) | 1.5 mA |
| Programming Resolution (Voltage) | 1 mV |
| Programming Resolution (Current) | 1 mA |
| Interface | GPIB (IEEE-488) |
Keysight Technologies 6284A Options:
- 6284A - Opt 100 - 87 to 106 Vac, 47 to 66 Hz Input, 6.3 A (Japan only)
- 6284A - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6284A - Opt 220 - 191 to 233 Vac, 47 to 66 Hz, 3.0 A
- 6284A - Opt 240 - 209 to 250 Vac, 47 to 66 Hz, 3.0 A
- 6284A - Opt 750 - Relay Control and DFI/RI
- 6284A - Opt S50 - Similar to option 750, however the remote inhibit does not latch
- 6284A - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6284A - Opt 909 - Rack-mount Kit w/Handles (p/n 5063-9221)
- 6284A - Opt 0L2 - Extra Standard Documentation Package
- 6284A - Opt 0B3 - Service Manual
- 6284A - Opt 0B0 - No documentation package
| Model | 6284A |
|---|

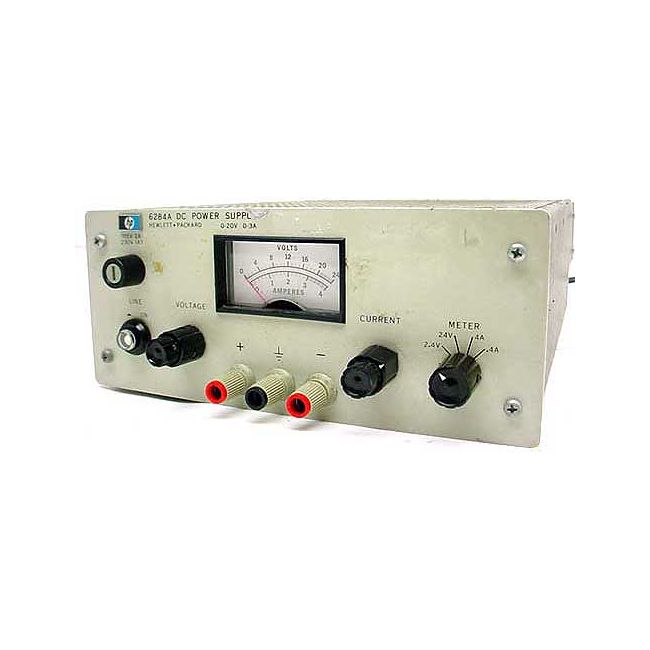

The Keysight (Agilent) 6284A is a fully transistorized, constant voltage/constant current power supply delivering 20V at 3A with a 60W output capacity. Designed for both bench and rack use, it features remote sensing and programming, floating output capability, and front/rear terminals for flexible connections. It supports auto-series, auto-parallel, and auto-tracking configurations. With ripple and noise at just 500 µV RMS (CV) and 5 mA RMS (CC), along with tight line/load regulation, it ensures clean and stable output.
Compact and robust, the 6284A is ideal for applications demanding precise voltage and current control in a portable or fixed setup.
Testwall can supply the used Keysight (Agilent) 6284A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6284A.
