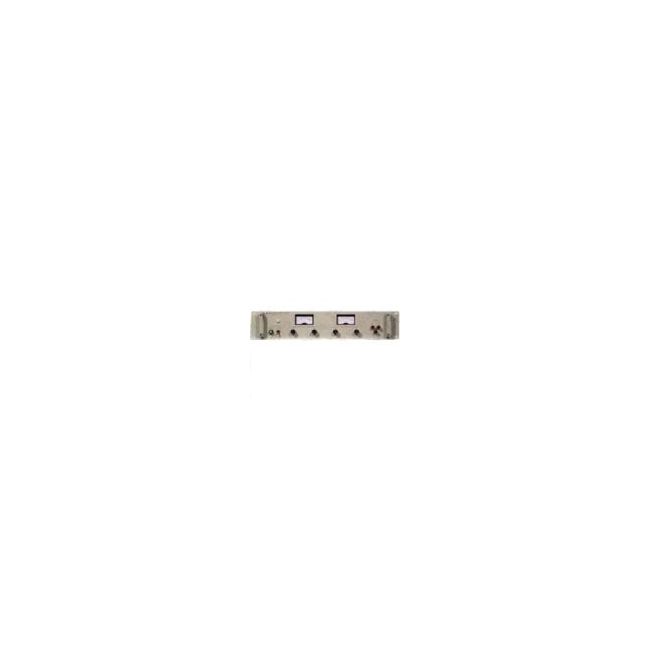

Keysight (Agilent) 6438B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 38 A |
| Maximum Output Power | 760 W |
| Load Regulation (Voltage) | 2 mV |
| Load Regulation (Current) | 10 mA |
| Line Regulation (Voltage) | 2 mV |
| Line Regulation (Current) | 10 mA |
| Input Voltage | 115/230 VAC, 47–63 Hz |
| Programming Interface | GPIB (IEEE-488) |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 6438B Options:
- 6438B - Std - 115 V ac, ±10%, single phase, 57-63 Hz
- 6438B - 005 - Realignment for 50 Hz operation
- 6438B - 010 - Chassis slides
- 6438B - 027 - 208 V ac, ±10%, single phase, 57-63 Hz
- 6438B - 028 - 230 V ac, ±10%, single phase, 57-63 Hz
- 6438B - 910 - One extra operating and service manual shipped with each power supply
| Model | 6438B |
|---|
The Keysight (Agilent) 6438B is a solid-state, SCR-regulated DC power supply offering precise control from 0 to 60V and 0 to 5A, with 300W output. It features CV/CC operation, metered outputs, and remote sensing/programming capabilities. Its compact design supports bench or rack use, with load/source effects of 60 mV/50 mA and 30 mV/50 mA respectively, ensuring efficiency up to 75%.
Ideal for test environments, it integrates reverse voltage protection, a fused AC input, and supports auto-series, -parallel, and -tracking connections.
Testwall can supply the used Keysight (Agilent) 6438B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6438B.
