Keysight (Agilent)

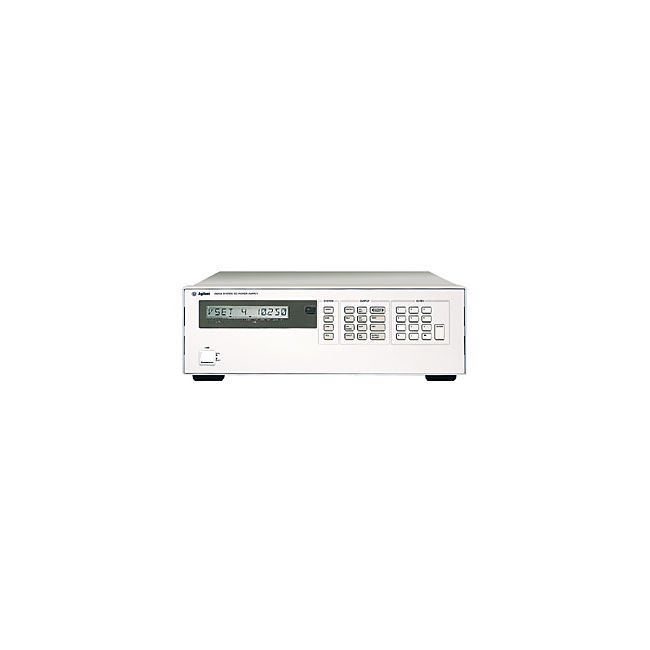

Keysight (Agilent) 6624A 50V 0.8A Quad Power Supply
50V 0.8A?Quad Power Supply
4 Number of Outputs
0 to 50V per channel Output Voltage Range
0 to 0.8A per channel Output Current Range
160W total (40W per channel) Maximum Output Power
GPIB (IEEE-488) Programming Interface
| Attribute | Value |
|---|---|
| Number of Outputs | 4 |
| Output Voltage Range | 0 to 50V per channel |
| Output Current Range | 0 to 0.8A per channel |
| Maximum Output Power | 160W total (40W per channel) |
| Programming Interface | GPIB (IEEE-488) |
| Voltage Programming Accuracy | 0.05% + 10mV |
| Current Programming Accuracy | 0.2% + 5mA |
| Output Voltage Ripple and Noise | 1mV RMS / 5mV peak-to-peak |
| AC Input Voltage | 100/120/220/240 VAC, 47-63 Hz |
| Form Factor | Rack mountable, 3U half-rack |
Keysight Technologies 6624A 50V 0.8A Quad Power Supply Options:
- 6624A - Opt 100 - 87 to 106 Vac, 47 to 66 Hz Input, 6.3 A (Japan only)
- 6624A - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6624A - Opt 220 - 191 to 233 Vac, 47 to 66 Hz, 3.0 A
- 6624A - Opt 240 - 209 to 250 Vac, 47 to 66 Hz, 3.0 A
- 6624A - Opt 750 - Relay Control and DFI/RI
- 6624A - Opt S50 - Similar to option 750, however the remote inhibit does not latch
- 6624A - Opt 908 - Rack-mount Kit (p/n 5062-3977)
- 6624A - Opt 909 - Rack-mount Kit w/Handles (p/n 5063-9221)
- 6624A - Opt 0L2 - Extra Standard Documentation Package
- 6624A - Opt 0B3 - Service Manual
- 6624A - Opt 0B0 - No documentation package
| Model | 6624A |
|---|
The Keysight (Agilent) 6624A is a 40W, four-output programmable DC power supply with dual-range flexibility and built-in measurement capability. It offers low-noise outputs with fast transient response and features voltage ranges from 0–7V/5A, 0–20V/2A, and up to 50V/0.8A. Programming accuracy reaches ±0.06% + 19–50 mV (voltage) and ±0.16% + 20–50 mA (current), while ripple is limited to 500 µV RMS and 1 mA RMS (current). The supply also includes protection features to ensure safe operation of connected devices.
Ideal for R&D labs and automated testing environments, the 6624A reduces test time and enhances accuracy across complex multi-channel setups.
Testwall can supply the used Keysight (Agilent) 6624A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6624A.
