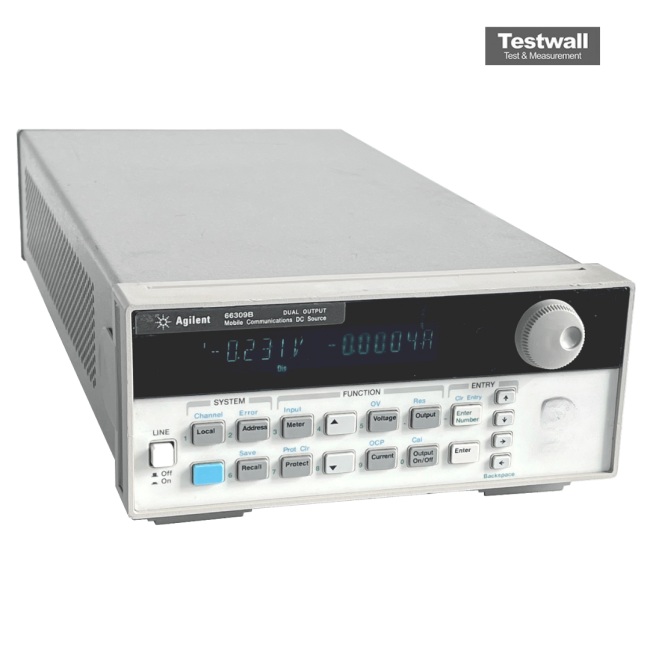

Keysight (Agilent) 66309B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 15 V |
| Output Current Range | 0 to 3 A (main output) |
| Number of Outputs | 2 (one main, one auxiliary) |
| Auxiliary Output Voltage | 0 to 5 V at up to 1 A |
| Interface | GPIB (IEEE-488) and RS-232 |
| Measurement Functions | Voltage and current measurement with data logging capability |
| Dynamic Current Simulation | Supports dynamic current waveform simulation for mobile device testing |
| Input Voltage (AC) | 100/115/230 VAC, 50/60 Hz |
| Output Power | 45 W maximum total output power |
| Form Factor | Benchtop, half-rack width (2U) |
Keysight Technologies 66309B Options:
- 66309B - Opt 100 - 87 to 106 Vac, 47 to 63 Hz
- 66309B - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 66309B - Opt 220 - 191 to 233 Vac, 47 to 63 Hz
- 66309B - Opt 230 - 207 to 253 Vac, 47 to 63 Hz
- 66309B - Opt 004 - Make "Hi Compensation Mode" as default setting
- 66309B - Opt 521 - Solid State Relays
- 66309B - Opt AYK - No Solid State Relays
- 66309B - Opt 1CM - Rack-mount kit (p/n 5062-3972)
- 66309B - Opt AXS - Rack-mount Kit for side-by-side mounting
- 66309B - Opt 8ZJ - Delete feet
- 66309B - Opt 8ZL - Include feet
- 66309B - Opt 0L1 - Full documentation on CD-ROM, and printed standard documentation package
- 66309B - Opt 0L2 - Extra copy of standard printed documentation package
- 66309B - Opt 0B0 - Full documentation on CD-ROM only
- 66309B - Opt 0B3 - Service manual
| Model | 66309B |
|---|
The Keysight (Agilent) 66309B DC source delivers dual output for comprehensive mobile communications device testing. It supports 0–15V, 0–3A output with peak currents up to 5A, perfect for simulating both main battery and charging circuits. Integrated with advanced measurement tools, it enables accurate battery drain analysis and includes a unique feature to detect open-sense wire connections.
This compact unit, with two outputs in a half-rack size, optimizes space and eliminates the need for multiple power supplies, streamlining test setups for wireless devices and chargers.
Testwall can supply the used Keysight (Agilent) 66309B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 66309B.
