Keysight (Agilent) 6631B
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 8 VDC |
| Output Current Range | 0 to 10 A |
| Maximum Output Power | 80 W |
| Voltage Programming Accuracy | 0.04% + 10 mV |
| Current Programming Accuracy | 0.1% + 10 mA |
| Output Ripple and Noise (RMS) | 1 mV RMS / 5 mV peak-to-peak |
| Interface | GPIB (IEEE-488) |
| Input Voltage | 100/120/220/240 VAC, 47-63 Hz |
| Operating Temperature | 0°C to 55°C |
| Form Factor | Half-rack, 2U (EIA) |
Keysight Technologies 6631B Options:
- 6631B - Opt 100 - 87 to 106 Vac, 47 to 63 Hz
- 6631B - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6631B - Opt 220 - 191 to 233 Vac, 47 to 63 Hz
- 6631B - Opt 230 - 207 to 253 Vac, 47 to 63 Hz
- 6631B - Opt 020 - Front-panel Binding Posts
- 6631B - Opt 1CM - Rack-mount Kit, p/n 5063-9212
- 6631B - Opt 1CP - Rack-mount Kit with Handles, p/n 5063-9219
- 6631B - Opt 0L2 - Additional standard documentation package
- 6631B - Opt 0B3 - Service Manual
| Model | 6631B |
|---|

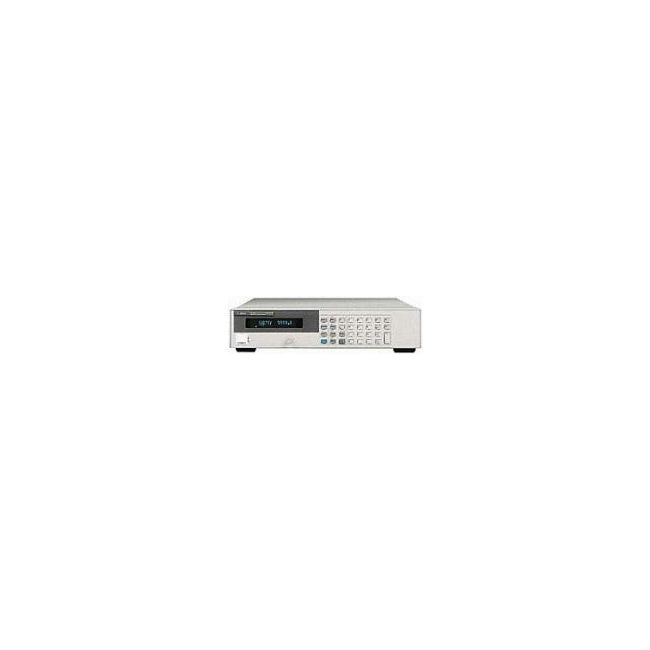

The Keysight (Agilent) 6631B is a high-performance, single-output DC power supply delivering 0 to 8 V and 0 to 10 A with 80W output power. It features low-noise performance, fast transient response, and precision low current measurements with dual-range sensing. Its GPIB interface and programmable active down-programmer streamline automated testing in development and production environments.
Ideal for medium-power automated applications, the 6631B includes optional isolation and polarity reversal relays, offering flexibility for diverse testing needs.
Testwall can supply the used Keysight (Agilent) 6631B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6631B.
