Keysight (Agilent)

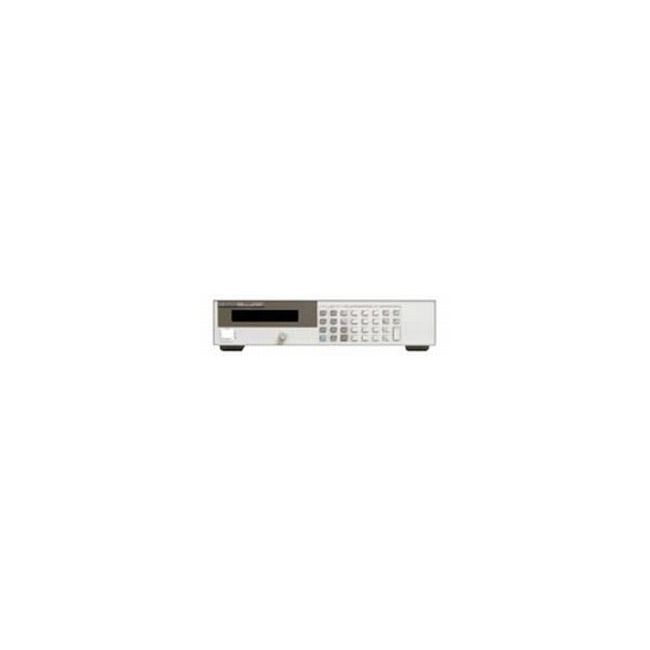

Keysight (Agilent) 6642A
20V 10A DC Programmable Power Supply
0 to 20V Output Voltage Range
0 to 10A Output Current Range
200W Maximum Output Power
±(0.05% + 10mV) Voltage Programming Accuracy
±(0.2% + 10mA) Current Programming Accuracy
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20V |
| Output Current Range | 0 to 10A |
| Maximum Output Power | 200W |
| Voltage Programming Accuracy | ±(0.05% + 10mV) |
| Current Programming Accuracy | ±(0.2% + 10mA) |
| Load Regulation (Voltage) | ±2mV |
| Load Regulation (Current) | ±4mA |
| Output Ripple and Noise (RMS) | 1mV RMS / 5mV peak-to-peak |
| Interface | GPIB (IEEE-488) |
| AC Input Voltage | 100/120/220/240 VAC, 47–63 Hz |
Keysight Technologies 6642A Options:
- 6642A - Opt 100 - 87 to 106 Vac, 47 to 63 Hz
- 6642A - Opt 120 - 104 to 127 Vac, 47 to 63 Hz
- 6642A - Opt 220 - 191 to 233 Vac, 47 to 63 Hz
- 6642A - Opt 240 - 209 to 250 Vac, 47 to 63 Hz
- 6642A - Opt 908 - Rack-mount Kit (p/n 5063-9212)
- 6642A - Opt 909 - Rack-mount Kit w/ Handles (p/n 5063-9219)
- 6642A - Opt 0L2 - Extra Standard Documentation Package
- 6642A - Opt 0B3 - Service Manual
- 6642A - Opt 0B0 - No Documentation Package
| Model | 6642A |
|---|
The Keysight (Agilent) 6642A is a 200W, single-output, series pass-regulated power supply with SCPI-compatible GPIB control. It offers precise remote programming of voltage and current with feedback of measured output values. Multiple units can be auto-paralleled or connected in series, with up to 16 supplies linkable through a single GPIB interface. Built-in protection includes programmable over-voltage/current, over-temperature shutdown, and DFI/RI capabilities.
Ideal for system applications requiring reliable control and integration, the 6642A supports user-defined power-on states, GPIB-triggered self-tests, and VXI plug & play compatibility for streamlined test automation.
Testwall can supply the used Keysight (Agilent) 6642A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6642A.
