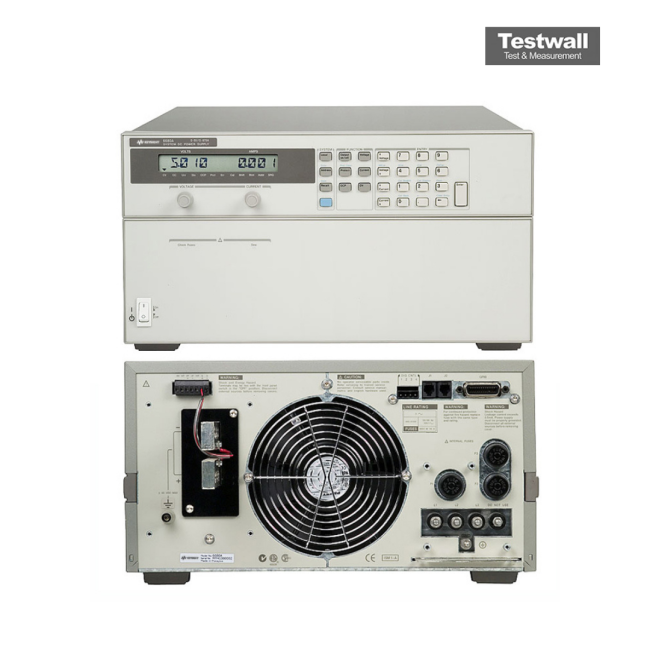

Keysight (Agilent) 6682A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 20 V |
| Output Current Range | 0 to 55 A |
| Output Power | 1000 W |
| Voltage Programming Accuracy | 0.05% + 10 mV |
| Current Programming Accuracy | 0.1% + 55 mA |
| Load Regulation (Voltage) | 2 mV |
| Load Regulation (Current) | 15 mA |
| Input Voltage | 208/220/230 VAC, Single Phase, 47–63 Hz |
| Interface | GPIB (IEEE-488) |
| Form Factor | Rack Mountable, 3U |
Keysight Technologies 6682A Options:
- 6682A - Opt 400 - 360 to 440 Vac, 3 phase, 47 to 63 Hz
- 6682A - Opt 601 - Output bus bar, cover and spacer kit for bench applications where leads must be oriented vertically (Order separately as p/n 5060-3515)
- 6682A - Opt 602 - Two Bus Bar Spacers for paralleling power supplies (p/n 5060-3514)
- 6682A - Opt 908 - Rack-mount Kit (p/n 5062-3977 and p/n 5063-9212)
- 6682A - Opt 909 - Rack-mount Kit with Handles (p/n 5063-9221 and p/n 5063-9219)
- 6682A - Opt 910 - Service Manual, extra Operating Guide and Programming Guide
| Model | 6682A |
|---|
The Keysight (Agilent) 6682A is a high-performance 5040W DC power supply offering a voltage range of 0 to 21 V and a current output up to 240 A. It features low output ripple (1.5 mV rms, 10 mV peak-to-peak) and high programming accuracy (0.04% + 21 mV for voltage, 0.1% + 125 mA for current), making it ideal for precise test environments.
With GPIB interface and selectable compensation for inductive loads, it integrates easily into manufacturing test setups, supporting analog control and minimizing acoustic noise with fan-speed control.
Testwall can supply the used Keysight (Agilent) 6682A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6682A.
