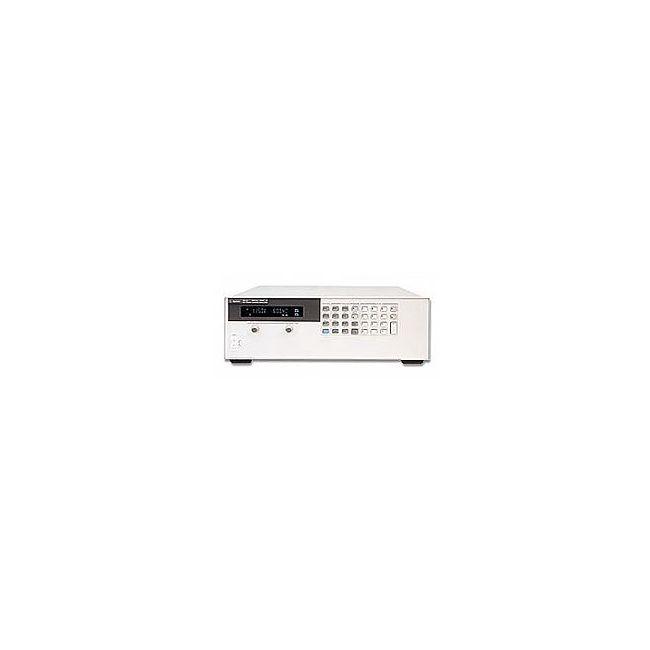

Keysight (Agilent) 6811B 375 VA AC Power Source/Analyser
375 VA?AC Power Source/Analyser
375 VA Output Power Capacity
0 to 156 V RMS (low range), 0 to 312 V RMS (high range) Output Voltage Range
45 Hz to 1000 Hz (AC mode), DC operation also supported Output Frequency Range
3.3 A RMS (high voltage range), 6.6 A RMS (low voltage range) Maximum Output Current
0.1 V RMS Voltage Programming Resolution
| Attribute | Value |
|---|---|
| Output Power Capacity | 375 VA |
| Output Voltage Range | 0 to 156 V RMS (low range), 0 to 312 V RMS (high range) |
| Output Frequency Range | 45 Hz to 1000 Hz (AC mode), DC operation also supported |
| Maximum Output Current | 3.3 A RMS (high voltage range), 6.6 A RMS (low voltage range) |
| Voltage Programming Resolution | 0.1 V RMS |
| Frequency Programming Resolution | 0.01 Hz |
| Total Harmonic Distortion (THD) | Less than 0.25% (45 Hz to 1000 Hz at full power) |
| Measurement Functions | RMS voltage, RMS current, real power (watts), apparent power (VA), power factor, DC voltage, DC current, crest factor |
| Interface/Connectivity | IEEE-488 (GPIB) and RS-232 standard; SCPI programmable |
| Input Power Requirements | 100/120/220/230/240 V AC, 47–63 Hz, single phase |
Keysight Technologies 6811B 375 VA AC Power Source/Analyser Options:
- 6811B - 020 - Dual Power Analyzer Option
- 6811B - 0BN - Service Manual, extra Operating Guide, and Programming Guide
- 6811B - 1CM - Rack-mount Kit, p/n 5062-3977 (quantity 2) (support rails required)
- 6811B - 1CP - Rack-mount Kit with Handles, p/n 5062-3983 (support rails required)
- 6811B - 100 - 87 to 106 Vac (100 Vac nominal), 47-63 Hz, Japan only
- 6811B - 120 - 104-127 Vac (120 Vac nominal), 47-63 Hz
- 6811B - 208 - 174 to 220 Vac (208 Vac nominal), 47-63 Hz
- 6811B - 230 - 191 to 254 Vac (230 Vac nominal), 24-63 Hz
| Model | 6811B |
|---|
The Keysight (Agilent) 6811B AC Power Source/Analyzer offers a complete AC and DC test solution by combining the functions of a power amplifier, arbitrary waveform generator, and built-in power analyzer. It enables precise simulations of AC line disturbances—such as sags, dropouts, and brownouts—using a transient generation system and a range of preprogrammed waveforms. With 16-bit precision, it measures RMS and peak voltage, peak current, real and reactive power, total harmonic distortion, and more, streamlining test setups and improving accuracy.
The 6811B delivers up to 375 VA of AC power, with a 300V RMS output and 0–40A peak current range across 45–1000 Hz. It also supports DC output or DC offset for AC signals, ideal for versatile testing needs.
Testwall can supply the used Keysight (Agilent) 6811B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6811B.
