Keysight (Agilent) 6841A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 300 VAC |
| Output Current Rating | Up to 1000 A peak |
| Output Frequency Range | 45 Hz to 1000 Hz |
| Power Rating | 3000 VA |
| Number of Phases | Single Phase |
| Total Harmonic Distortion (THD) | Less than 0.5% at full resistive load |
| Output Waveform | Synthesized sine wave |
| Programming Interface | GPIB, RS-232 |
| Input Voltage | 115/230 VAC, 50/60 Hz |
| Dimensions (H x W x D) | 133 mm x 425 mm x 600 mm (5.25 in x 16.75 in x 23.6 in) |
| Model | 6841A |
|---|

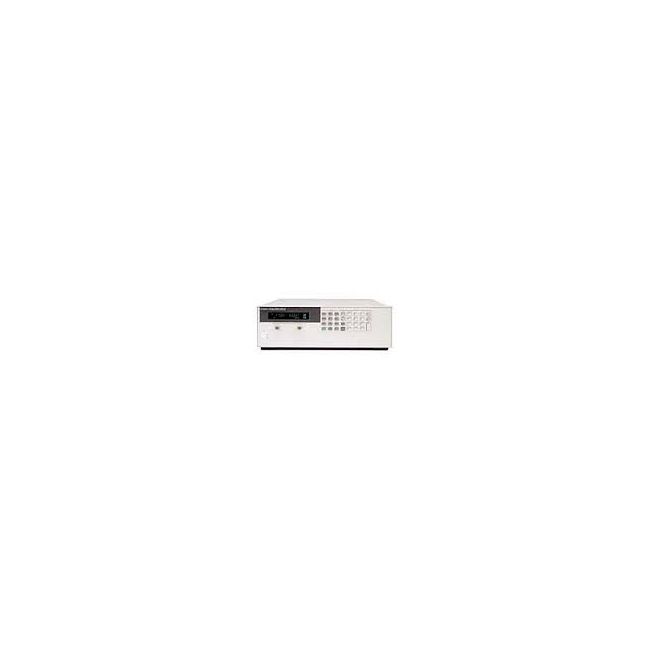

The Keysight (Agilent) 6841A is a 750VA AC power source ideal for harmonic and flicker testing, supporting 120V, 220V, or 240V input mains. It delivers regulated AC voltage and current from 45 Hz to 1000 Hz, with derated performance below 45 Hz down to DC.
Users can generate sine, square, clipped sine, or arbitrary waveforms, with control via keypad or remotely through GPIB or RS-232. Measurement readbacks include voltage, current, and power factor.
Testwall can supply the used Keysight (Agilent) 6841A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 6841A.
