Keysight (Agilent)

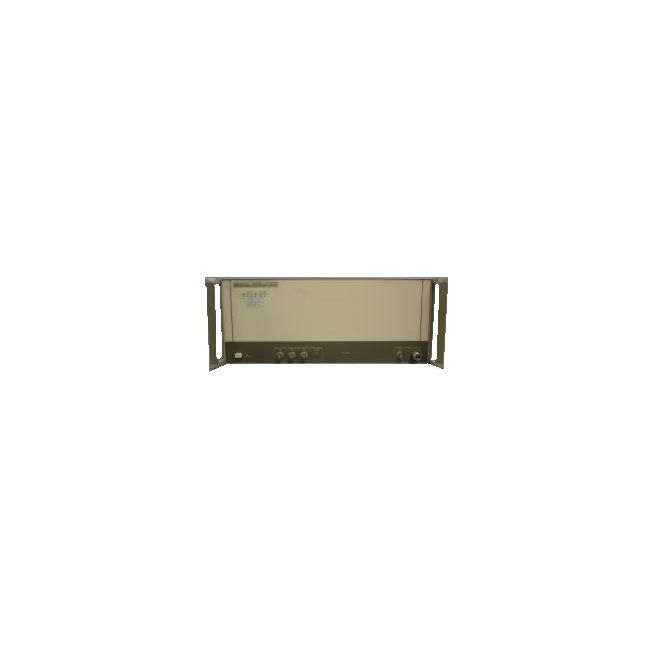

Keysight (Agilent) 70322A
Synthesized Signal Generator
2 GHz to 26.5 GHz Frequency Range
Local Oscillator Module Module Type
Keysight 70000 Series Modular MMS (Microwave Measurement System) System Compatibility
+10 dBm typical Output Power
-80 dBc/Hz at 10 kHz offset (typical) Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 26.5 GHz |
| Module Type | Local Oscillator Module |
| System Compatibility | Keysight 70000 Series Modular MMS (Microwave Measurement System) |
| Output Power | +10 dBm typical |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Frequency Resolution | 1 Hz |
| Connector Type | APC 3.5mm (SMA compatible) |
| Power Requirements | Supplied via MMS mainframe (Keysight 70001A or 70004A) |
| Form Factor | Single-width MMS plug-in module |
| Operating Temperature Range | 0°C to 55°C |
| Model | 70322A |
|---|
The Keysight (Agilent) 70322A is a synthesized signal generator module designed for integration with the 7004A display system, offering an RF output range of 100 kHz to 4.2 GHz and amplitude from +13 to -139.9 dBm. It supports AM/FM and phase modulation functions.
With no front panel, the 70322A is controlled entirely through the 7004A, making it ideal for automated and embedded RF testing systems requiring precision and space efficiency.
Testwall can supply the used Keysight (Agilent) 70322A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 70322A.
