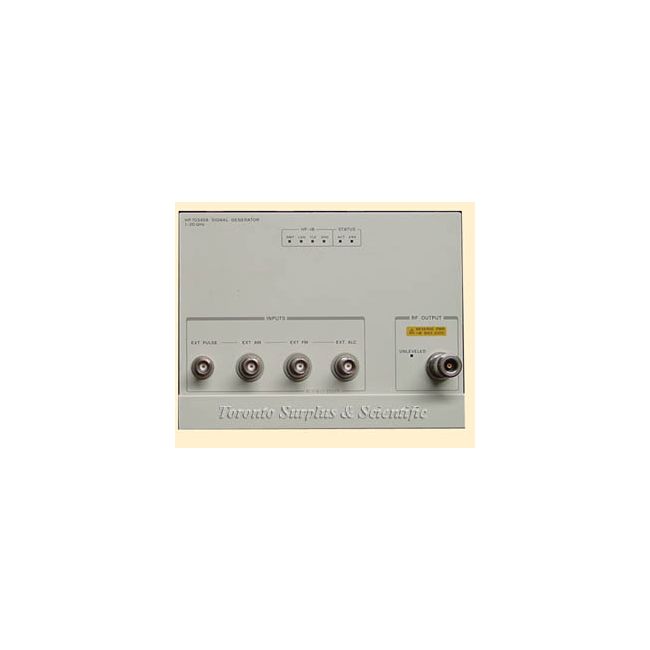

Keysight (Agilent) 70340A
| Attribute | Value |
|---|---|
| Frequency Range | 1 GHz to 20 GHz |
| Output Power Range | -20 dBm to +10 dBm |
| Frequency Resolution | 1 Hz |
| Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Output Connector | Type-N (female) |
| Modulation Types | AM, FM, Phase, and Pulse Modulation |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C |
| Interface | GPIB (IEEE-488) |
| Form Factor | MMS (Modular Measurement System) Module |
| Model | 70340A |
|---|
The Keysight (Agilent) 70340A is a 4-slot MMS module synthesizer offering a frequency range from 1 to 20 GHz, extendable down to 10 MHz with the 70341A extension. It delivers +13 dBm output, <−55 dBc harmonics, and <−60 dBc spurious levels, with optional 1 Hz frequency resolution and step attenuator for precision testing.
Modulation support includes pulse, FM, and log AM, with a pulse generator option delivering <10 ns transitions and programmable rates, widths, and delays. Internal leveling ensures ±0.5 dB RF output flatness and supports remote test ports with level correction.
Testwall can supply the used Keysight (Agilent) 70340A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 70340A.
