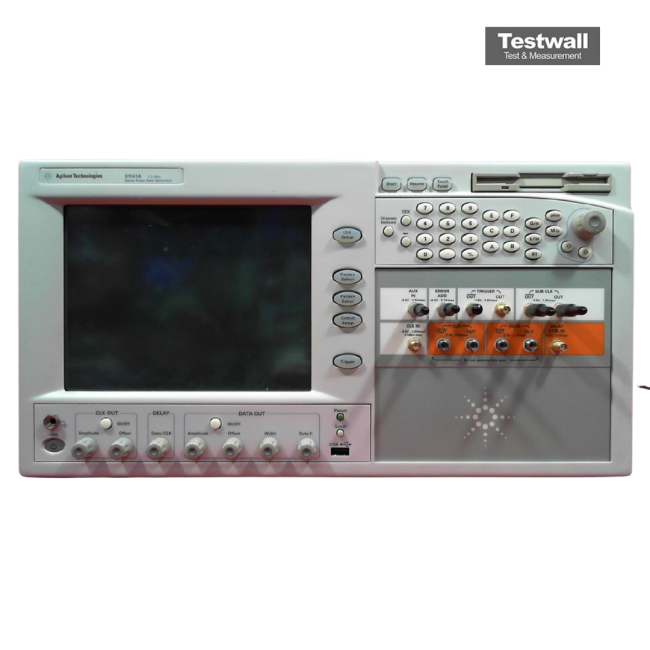

Keysight (Agilent) 81141A
| Attribute | Value |
|---|---|
| Repetition Rate | 150 MHz to 7 GHz |
| Amplitude | 0.1 to 1.8 V, -2 to +3 V |
| Pulse Width | 70 ps to period - 70 ps |
| Output Impedance | 50 Ω |
| Output Connector | 2.4 mm female |
| Channels | 1 data and 1 clock, differential |
| Data Rate | 150 Mb/s to 7 Gb/s, NRZ, RZ, R1 |
| Transition Times | < 20 ps (20/80), < 25 ps (10/90) |
| Timing Resolution | 100 fs (clock/data delay ±0.75 ns) |
| Jitter | 1 ps RMS (clock, typ.), 9 ps p-p (data, typ.) |
| Pattern Memory | 32 Mbit, PRBS 2^n - 1, n = 7, 10, 11, 15, 23, 31 |
| Interfaces | GPIB, LAN, USB |
| Dimensions | 425 × 222 × 580 mm |
| Weight | 24.5 kg |
The Keysight (Agilent) 81141A is a high-speed serial Pulse Data Generator, supporting data rates up to 13 GHz, engineered for validating and characterizing advanced digital transmission systems. It delivers superior-quality, low jitter signals with support for RZ, R1, and NRZ formats and enables linear delay modulation up to 1 GHz, essential for jitter transfer and tolerance testing. It offers full control over data patterns and sequences, providing the flexibility needed for protocol-specific stress testing.
This generator is ideal for physical layer measurements in high-speed bus designs and foundational research applications, ensuring reliable results and maximum test coverage.
Testwall can supply the used Keysight (Agilent) 81141A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81141A.
