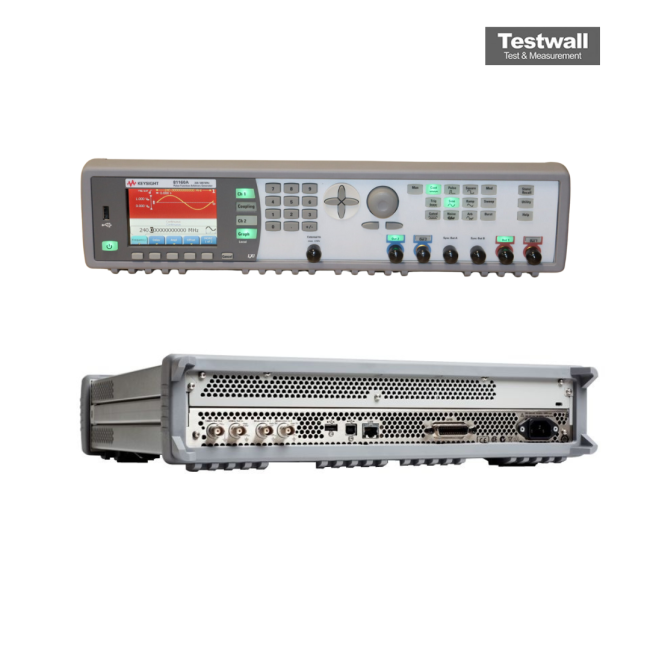

Keysight (Agilent) 81160A
| Attribute | Value |
|---|---|
| Channels | 1 or 2 channels |
| Sample Rate | 2.5 GSa/s |
| Modulation | AM, FM, ΦM, PWM, FSK |
| Vertical Resolution | 14 bit |
| Rise/Fall Time | 1.0 ns to 1000 s |
| Frequency Range | 1 µHz to 500 MHz (sine); 1 µHz to 330 MHz (pulse, square) |
| Amplitude | 50 mVpp to 5 Vpp into 50 Ω (to 330 MHz); 50 mVpp to 3 Vpp (330 to 500 MHz) |
| Waveforms | sine, square, ramp, triangle, pulse, noise, arbitrary |
| Arbitrary Memory | 256 kpts (1 channel), 128 kpts per channel (2 channels) |
| Harmonic Distortion | < -65 dBc up to 2 MHz at 1 Vpp |
| Jitter | 7 ps rms (typ.) |
| Output Impedance | 50 Ω (nom.) |
| Output Connector | BNC |
| Interfaces | GPIB, LAN (LXI), USB |
| Dimensions | 439 × 108 × 456 mm |
| Weight | 8 kg |
Keysight (Agilent) 81160A Options:
- 81160A - #001 - 1-channel pulse function arbitrary noise generator
- 81160A - #002 - 2-channel pulse function arbitrary noise generator
- 81160A - #1A7 - ISO17025 calibration documents
- 81160A - #Z54 - Z540.3 calibration documents
- 81160A - #330 - License for 330 Mbit/s pattern generator
- 81160A - #660 - License for 660 Mbit/s pattern generator
- 81160A - #DOC - Printed documentation. Includes printed Getting Started Guide and printed User Guide
- 81160A - #1CP - Rack mount kit
- 81160A - #R-51B-001-5Z - Additional 2 years warranty (5 years total)
- 81160A - #326 - License for upgrade from 330 Mbit/s to 660 Mbit/s pattern generator
The Keysight (Agilent) 81160A Pulse Function Arbitrary Noise Generator delivers pulses up to 330 MHz, sine waves to 500 MHz, and patterns up to 660 Mbit. With a 2.5 GSa/s sample rate, 14-bit resolution, and 256k sample memory per channel, it ensures precision. Integrated noise generation with selectable crest factor and modulation options including FM, AM, PM, PWM, and FSK make it an adaptable tool for advanced signal testing.
Designed for high-fidelity testing, the 81160A supports white Gaussian noise, glitch-free timing changes, and both coupled and uncoupled dual-channel configurations to suit complex testing requirements.
Testwall can supply the used Keysight (Agilent) 81160A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81160A.
