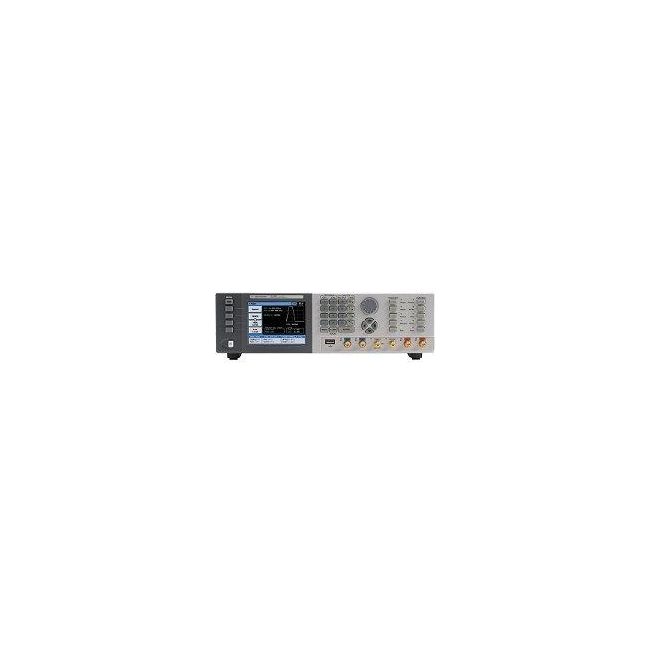

Keysight (Agilent) 81180B
| Attribute | Value |
|---|---|
| Channels | 1 or 2 channels |
| Sample Rate | 10 MSa/s to 4.6 GSa/s |
| Modulation | I/Q, 2 GHz bandwidth |
| Vertical Resolution | 12 bit |
| Output Impedance | 50 Ω (typ.) |
| Frequency Range | 10 kHz to 250 MHz (standard waveforms) |
| Amplitude | 100 mVpp to 3 Vpp (DC amplified); 100 mVpp to 1.2 Vpp (direct DAC); -20 to +10 dBm (AC) |
| Arbitrary Memory | 16 Mpts per channel |
| Rise/Fall Time | 600 ps (amplified), 350 ps (direct DAC) (typ.) |
| Harmonic Distortion | 2nd -60 dBc, 3rd -45 dBc (direct DAC, typ.) |
| Output Connector | SMA |
| Interfaces | GPIB, LAN, USB |
| Display | 4 in color TFT, 320 × 240 |
| Dimensions | 315 × 102 × 395 mm |
| Weight | 4.5 kg |
The Keysight (Agilent) 81180B Arbitrary Waveform Generator provides a 1 GHz modulation bandwidth per channel and 2 GHz I/Q modulation bandwidth, supporting up to 4.6 GSa/s sampling rate with 12-bit resolution. It offers selectable amplifiers, 64 MSa memory, and dynamic sequencing for precise signal creation. Users can operate with 2 or 4 channels, phase-coherent or independent, for versatile testing applications.
Optimized for real-time applications, the 81180B enables waveform customization, conditional jumps, and external control, all essential for communication device testing. Pre-defined waveforms expedite measurement routines.
Testwall can supply the used Keysight (Agilent) 81180B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81180B.
Options and configurations
- Arbitrary Memory: 16 Mpts per channel (64 Mpts with Opt. 264)
