Keysight (Agilent) 83018A
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 26.5 GHz |
| Gain | 25 dB typical |
| Noise Figure | 8 dB typical |
| Output Power at 1 dB Compression | +15 dBm typical |
| Input/Output Impedance | 50 Ohm |
| Connector Type | 2.4 mm (female input, male output) |
| Power Supply Voltage | +15 VDC |
| Current Consumption | 350 mA typical |
| Operating Temperature Range | 0°C to +55°C |
| Device Type | Microwave System Amplifier |
Keysight Technologies 83018A Options:
- 83018A - 001 - Higher output power (Pmax +25 dBm 2–20 GHz, +22 dBm 20–26.5 GHz)
| Model | 83018A |
|---|

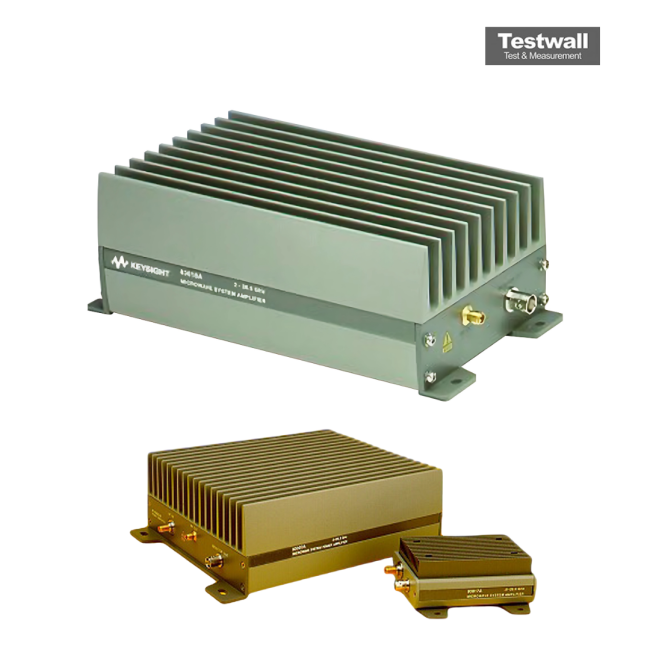

The Keysight (Agilent) 83018A Microwave System Amplifier offers ultra-broadband coverage from 2 to 26.5 GHz, replacing multiple narrowband amplifiers with one compact unit. It provides over 27 dB gain (to 20 GHz), 23 dB gain (to 26.5 GHz), and high output power with a P1dB of 22 dBm (to 20 GHz), 17 dBm (to 26.5 GHz). It features internal directional detectors, low noise figures, and versatile RF connectors (3.5mm female, BNC for DC output).
Designed for seamless integration, it includes a low-profile heat sink, mounting bracket, and 2-meter DC power cable. Operates with +12V@2A, -12V@50mA, compatible with 87421A power supply.
Testwall can supply the used Keysight (Agilent) 83018A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83018A.
