Keysight (Agilent) 83236B
| Attribute | Value |
|---|---|
| Frequency Range | 1.85 GHz to 1.99 GHz |
| Interface Standard | PCS Interface (IS-661 / CDMA) |
| Duplex Spacing | 80 MHz |
| Transmit Frequency Band | 1.85 GHz to 1.91 GHz |
| Receive Frequency Band | 1.93 GHz to 1.99 GHz |
| Insertion Loss (Transmit Path) | Less than 5 dB typical |
| Insertion Loss (Receive Path) | Less than 5 dB typical |
| Compatible Test Equipment | Keysight 8922 Series, HP 8924C Mobile Station Test Sets |
| Primary Function | PCS Interface Adapter for connecting base station equipment to mobile station test sets |
| Connector Type | Type-N RF connectors |
Keysight Technologies 83236B Options:
- 83236B - AX4 - Rack flange kit without handles
- 83236B - 1AB - Benchtop cabinet kit (for use with the Agilent 8924E)
| Model | 83236B |
|---|

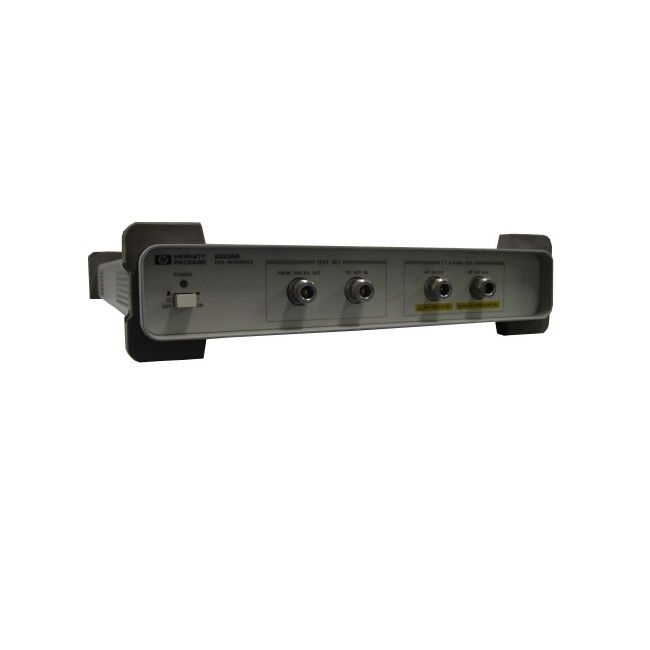

The Keysight (Agilent) 83236B PCS Interface is a high-precision cellular to PCS frequency translator that extends 800 MHz test capabilities to the 1710–1990 MHz band. It supports International, Korean, and North American PCS frequencies, ideal for TDMA and CDMA RF test setups. With a built-in power meter, it ensures fast and accurate power measurements for CW, CDMA, and TDMA signals.
This interface works seamlessly with Agilent 8920B, 8924C, and 8924E firmware-controlled systems, offering efficient serial bus integration and broad frequency compatibility.
Testwall can supply the used Keysight (Agilent) 83236B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83236B.
