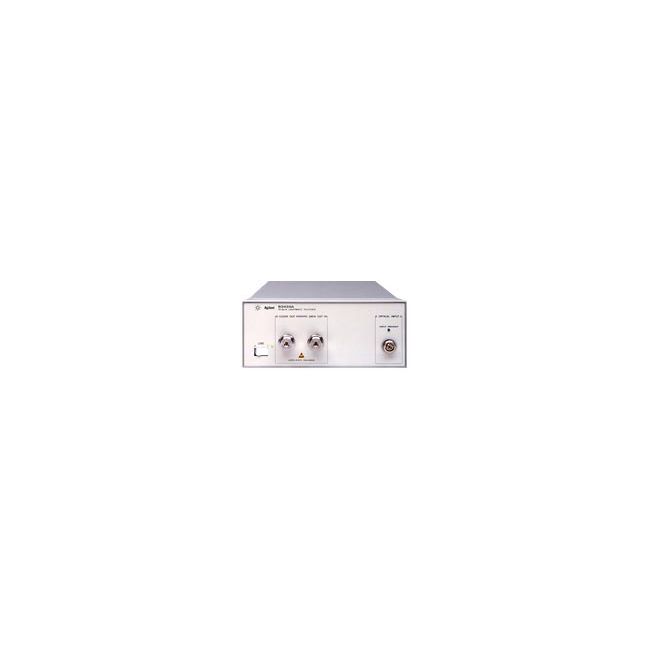

Keysight (Agilent) 83434A
| Attribute | Value |
|---|---|
| Wavelength Range | 1270 nm to 1620 nm |
| Frequency Range | 100 MHz to 22 GHz |
| Optical Input Power Range | -20 dBm to +10 dBm |
| Conversion Gain | -3 dB typical |
| Electrical Output Connector | 2.4 mm (f) |
| Optical Input Connector | FC/PC single-mode fiber |
| Output Impedance | 50 Ohm |
| Flatness | ±2 dB typical over full frequency range |
| Operating Temperature | 0°C to +55°C |
| Power Requirements | +15V DC, 250 mA (supplied via bias tee or external supply) |
Keysight Technologies 83434A Options:
- 83434A - 106 - Replaces clock recovery at SDH/SONET STM-64/OC-192 with FEC 10.664228 GHz
- 83434A - H31 - Replaces clock recovery at 9953.28 MHz with 10.3125 GHz (10 GigE)
| Model | 83434A |
|---|
The Keysight (Agilent) 83434A is a 10 Gb/s lightwave receiver that delivers linear, non-retimed data and recovers clock signals from SDH/SONET STM-64/OC-192 and FEC-enhanced signals up to 10.664 Gb/s. It utilizes an amplified PIN receiver with AGC stabilization, achieving –16 dBm sensitivity and BER performance of at least 1E-10 with PRBS to 2^31–1.
Designed for integration with the Agilent Infiniium DCA and 71612B analyzers, it enables precise optical eye diagram, Q-factor, and BER measurements when no external clock is present.
Testwall can supply the used Keysight (Agilent) 83434A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83434A.
