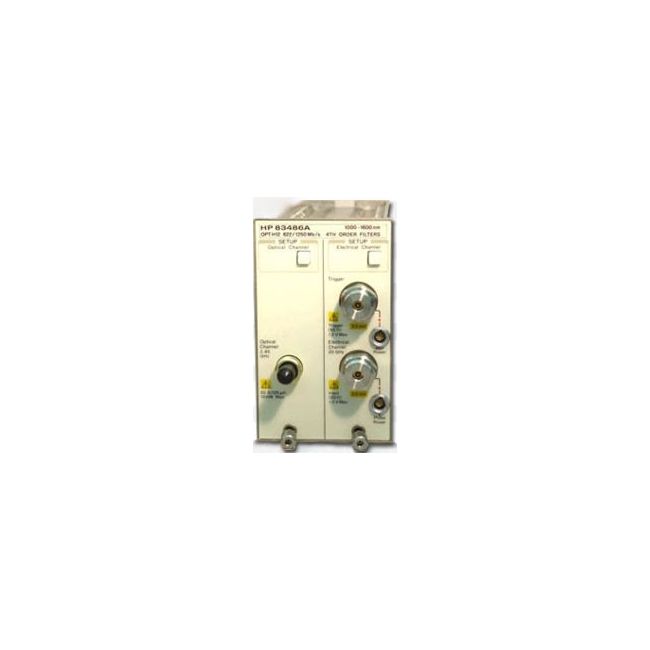

Keysight (Agilent) 83486A
| Attribute | Value |
|---|---|
| Module Type | Electrical/Optical Plug-In Module for 83480A/54750A Sampling Oscilloscope |
| Optical Wavelength Range | 1200 nm to 1600 nm |
| Optical Bandwidth | 20 GHz |
| Electrical Bandwidth | 40 GHz |
| Optical Input Connector | Single-Mode Fiber, FC/PC Connector |
| Electrical Input Connector | 2.4 mm Coaxial Connector |
| Number of Channels | 2 (One Optical, One Electrical) |
| Optical Input Power Range | -20 dBm to +3 dBm |
| Rise Time (Optical) | Less than 17.5 ps |
| Compatible Mainframes | Keysight/Agilent 83480A and 54750A Digital Communications Analyzer |
| Model | 83486A |
|---|
The Keysight (Agilent) 83486A is a plug-in module featuring a 3 GHz optical channel and a 20 GHz electrical channel, designed for use with the 83480A and 86100A/B/C mainframes. It supports 62.5/125 µm fibers and operates within a 750–860 nm wavelength range. The optical receiver includes reference capability for multiple data rates, and the electrical input uses a 3.5 mm male connector.
This module is ideal for analyzing high-speed digital signals and is compatible with Keysight’s 83480A Digital Communications Analyzer and the 86100 series Infiniium DCA mainframes.
Testwall can supply the used Keysight (Agilent) 83486A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83486A.
