Keysight (Agilent) 83494A
| Attribute | Value |
|---|---|
| Function | Clock Recovery Module |
| Data Rate | OC-192 / STM-64 (9.953 Gbps) |
| Input Frequency Range | 9.8 to 10.7 Gbps |
| Compatible Mainframe | Keysight 86100 Series Infiniium DCA |
| Optical Input Wavelength Range | 1100 to 1650 nm |
| Maximum Input Power | +3 dBm |
| Minimum Input Power (Sensitivity) | -18 dBm |
| Loop Bandwidth | 1 MHz (nominal) |
| Connector Type | SC/PC Optical Input Connector |
| Form Factor | Plug-in Module for 86100 Series Mainframe |
Keysight Technologies 83494A Options:
- 83494A - Option 106 - 155, 622, 2488, 2666, 10664 Mb/s
- 83494A - W30 - 3 years of customer return repair service
- 83494A - W32 - 3 years of customer return calibration service
- 83494A - W50 - 5 years of customer return repair service
- 83494A - W52 - 5 years of customer return calibration service
| Model | 83494A |
|---|

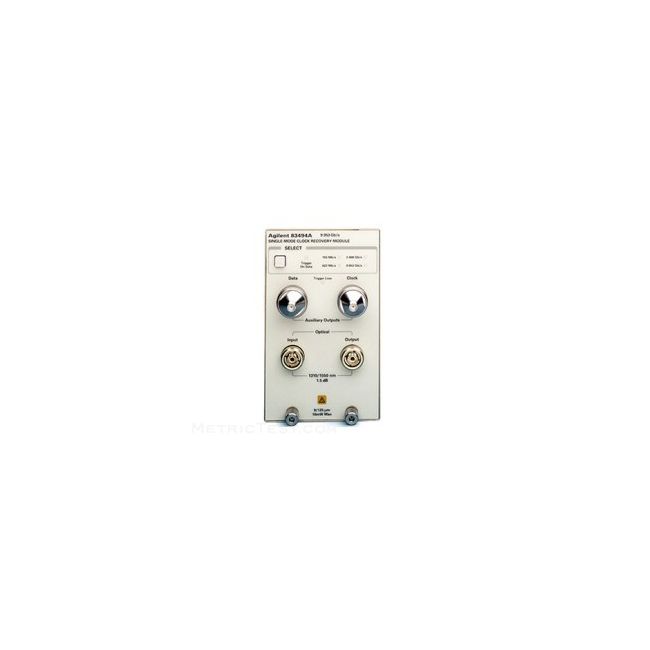

The Keysight (Agilent) 83494A is a single-mode clock recovery plug-in module engineered for high-speed digital transmission testing. It supports SONET/SDH rates up to 10.709 Gb/s and operates across a 1200-1600 nm wavelength range with optical clock recovery capabilities for 9/125 fibers. Its PLL bandwidth ranges from 90 kHz to 5 MHz and accommodates input power from -14 to +3 dBm or -8 to +3 dBm depending on data rates. Compatible with Infiniium DCA mainframes including 86100A/B/C/D.
The 83494A delivers precise timing reference extraction without an external trigger source, ensuring low jitter and accurate waveform displays across various high-speed data signals.
Testwall can supply the used Keysight (Agilent) 83494A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83494A.
