Keysight (Agilent)

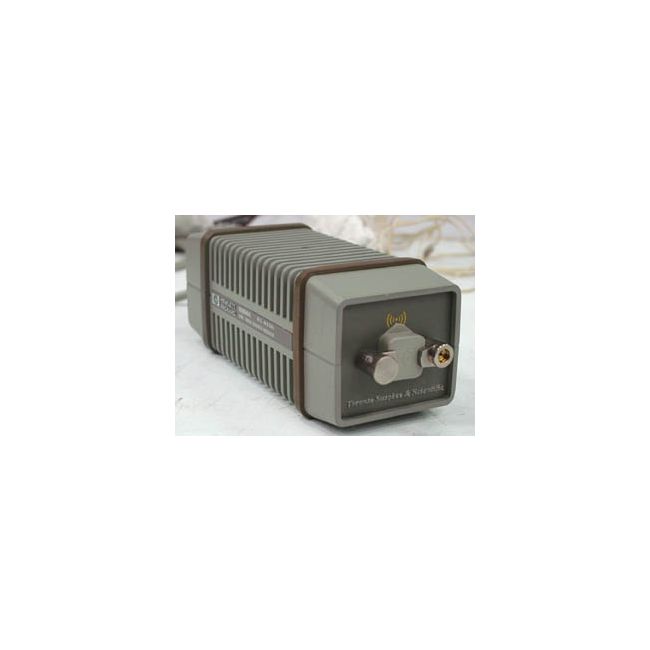

Keysight (Agilent) 83554A
Wave Source Module
26.5 GHz to 40 GHz Frequency Range
+17 dBm typical Output Power
-25 dBc typical at maximum power Harmonic Distortion
Compatible with 83550 Series Sweep Oscillator Mainframes Interface Compatibility
2.4 mm RF output connector Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 26.5 GHz to 40 GHz |
| Output Power | +17 dBm typical |
| Harmonic Distortion | -25 dBc typical at maximum power |
| Interface Compatibility | Compatible with 83550 Series Sweep Oscillator Mainframes |
| Connector Type | 2.4 mm RF output connector |
| Leveling Mode | Internal and external leveling capability |
| Power Flatness | ±1.0 dB typical across frequency range |
| Module Type | Millimeter-wave source module (plug-in) |
| Operating Temperature | 0°C to 55°C |
| Applications | Antenna testing, radar cross-section measurements, and millimeter-wave component testing |
| Model | 83554A |
|---|
The Keysight (Agilent) 83554A millimeter-wave source module operates in the 26.5 to 40 GHz range, offering high accuracy, leveled +8 dBm output power, and full waveguide band frequency coverage. It is compatible with various Agilent microwave sources.
Ideal for millimeter-wave testing and frequency response measurements, it can also serve as a mixer LO in specialized applications due to its extended dynamic range.
Testwall can supply the used Keysight (Agilent) 83554A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83554A.
