Keysight (Agilent) 83596A
2 GHz to 20 GHz Frequency Range
+20 dBm to -20 dBm Output Power Range
1 Hz Frequency Resolution
-80 dBc/Hz at 10 kHz offset (typical) SSB Phase Noise
-30 dBc typical Harmonics
| Attribute | Value |
|---|---|
| Frequency Range | 2 GHz to 20 GHz |
| Output Power Range | +20 dBm to -20 dBm |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Harmonics | -30 dBc typical |
| Output Connector | Type-N (female) |
| Sweep Time | 10 ms to 100 s |
| Power Level Accuracy | ±1 dB |
| Interface/Control | GPIB (IEEE-488) |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Model | 83596A |
|---|

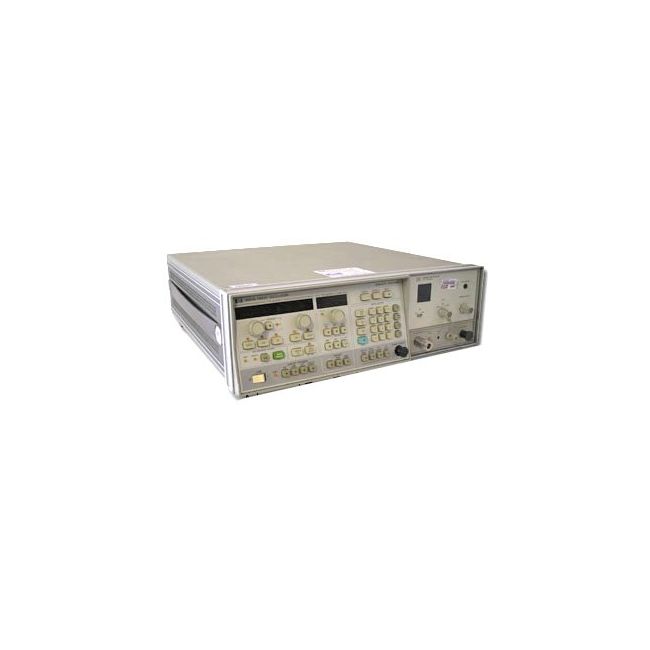

The Keysight (Agilent) 83596A RF plug-in module is designed for the 8350A/B sweep oscillator mainframes, delivering a swept frequency range from 2.4 to 40 GHz. It offers continuous sweep capability, ideal for high-frequency testing environments requiring precision and stability.
This module is perfect for a range of RF testing applications, ensuring consistent and accurate performance over a broad frequency span.
Testwall can supply the used Keysight (Agilent) 83596A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83596A.
