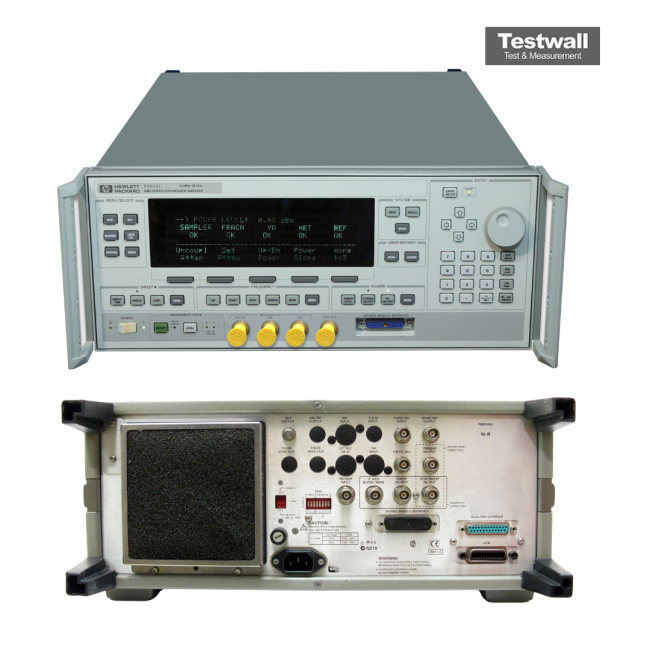

Keysight (Agilent) 83623L
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 20 GHz |
| Frequency Resolution | 1 kHz |
| Interfaces | GPIB |
| Dimensions | 425 × 178 × 648 mm |
| Weight | 27 kg |
| Output Power | -20 dBm to +15 dBm |
| SSB Phase Noise | -80 dBc/Hz at 10 GHz, 10 kHz offset |
| Level Accuracy | ±0.7 dB at 2 to 20 GHz, > -10 dBm (spec.) |
| Non-Harmonics | -60 dBc to 20 GHz, -54 dBc to 40 GHz, -52 dBc to 50 GHz |
| Switching Speed | 15 ms + 5 ms per GHz step (max.) |
| Sweep Modes | step sweep, list mode, ramp sweep, power sweep (801 points) |
| Timebase Aging | 10 MHz, 5 × 10⁻¹⁰ per day, 1 × 10⁻⁷ per year |
| RF Output Connector | 3.5 mm male front panel |
Keysight (Agilent) 83623L Options:
Options available for the Keysight (Agilent) 836xxL synthesized swept CW generators. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- 83623L - 001 - Step attenuator
- 83623L - 004 - RF output moved to rear panel
- 83623L - 008 - 1 Hz frequency resolution
- 83623L - 1E5 - High-stability timebase
- 83623L - 1CM - Rack mount kit
- 83623L - 1CN - Front handle kit
- 83623L - 1CP - Rack mount kit with handles
The Keysight (Agilent) 83623L is a high-performance synthesized swept CW generator delivering up to +15 dBm calibrated output power with harmonics better than -50 dBc below 20 GHz, and SSB phase noise under -80 dBc at 10 GHz and 10 kHz offset. It includes a full analog sweep function and achieves -110 dBm output with the step attenuator (Option 001).
Ideal for applications requiring precision and speed, the 83623L is versatile with reliable frequency stability and low phase noise, suited for demanding RF environments.
Testwall can supply the used Keysight (Agilent) 83623L, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 83623L.
Options and configurations
- Frequency Resolution: 1 kHz (1 Hz with Opt. 008)
- Output Power: -20 dBm (-110 dBm with Opt. 001) to +15 dBm
- RF Output Connector: 3.5 mm male front panel (rear panel with Opt. 004)
