Keysight (Agilent) 8486A
| Attribute | Value |
|---|---|
| Frequency Range | 26.5 GHz to 40 GHz |
| Power Range | -30 dBm to +20 dBm |
| Connector Type | WR-28 Waveguide |
| SWR (Maximum) | 1.13 (26.5–40 GHz) |
| Calibration Factor Uncertainty | ±1.2% (RSS) |
| Sensor Type | Thermocouple Power Sensor |
| Compatible Power Meters | Keysight E4418B, E4419B, 437B, 438A |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -40°C to 75°C |
| Weight | Approximately 0.16 kg (0.35 lb) |
| Model | 8486A |
|---|

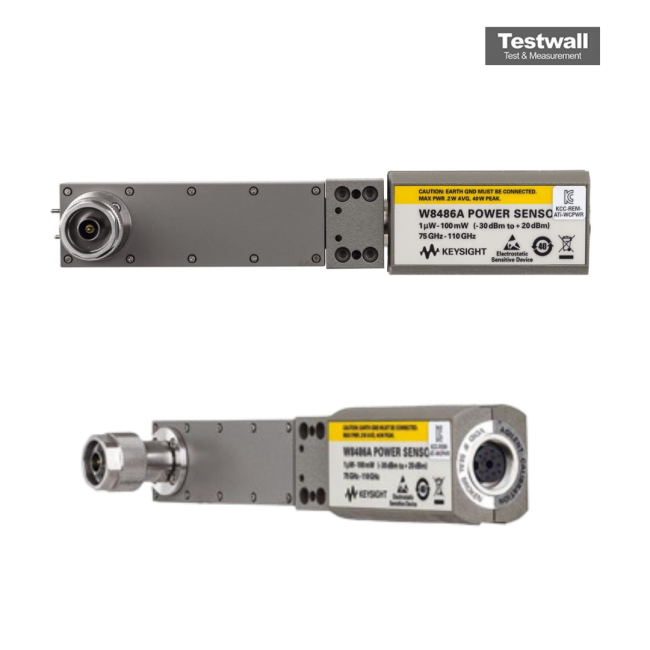

The Keysight (Agilent) 8486A Waveguide Power Sensor operates in the 75 to 110 GHz range, delivering accurate average power measurements from –30 to +20 dBm using a diode power sensing element. It features low standing wave ratio (SWR) for reduced mismatch uncertainty and includes a 50 MHz calibration port ensuring precision and traceability to NIST standards.
Designed for high-frequency applications, the Keysight (Agilent) 8486A provides reliable performance and consistent readings essential in microwave measurement systems.
Testwall can supply the used Keysight (Agilent) 8486A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8486A.
