Keysight (Agilent)

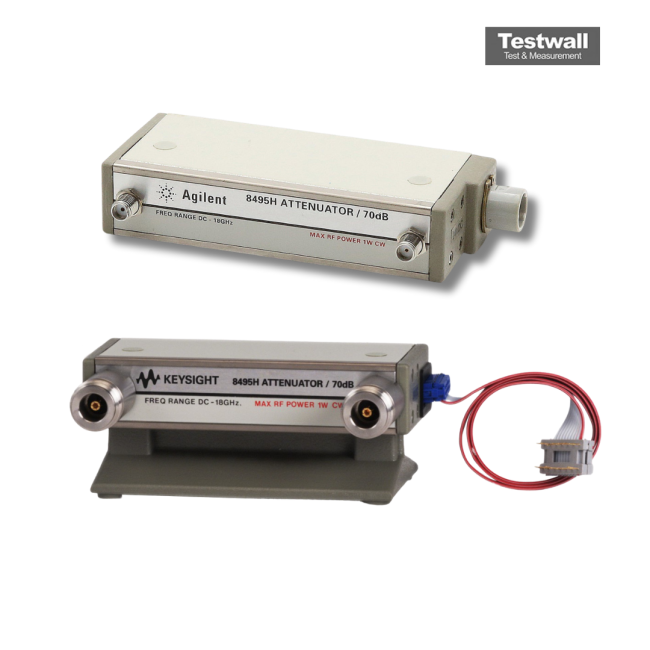

Keysight (Agilent) 8495H
DC - 18GHz 70dB Programmable Attenuator
DC to 18 GHz Frequency Range
0 to 70 dB Attenuation Range
10 dB per step Attenuation Step Size
2 W (average), 100 W (peak) Maximum Input Power
Type-N (male to female) Connector Type
€500.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Attenuation Range | 0 to 70 dB |
| Attenuation Step Size | 10 dB per step |
| Maximum Input Power | 2 W (average), 100 W (peak) |
| Connector Type | Type-N (male to female) |
| Impedance | 50 Ohm |
| VSWR (Maximum) | 1.6:1 |
| Insertion Loss (Maximum) | 0.9 dB at 18 GHz |
| Operating Temperature Range | 0°C to +55°C |
| Switching Mechanism | Manual step attenuator |
| Model | 8495H |
|---|
The Keysight (Agilent) 8495H is a programmable step attenuator offering 0 to 70 dB attenuation in 10 dB steps over a DC to 18 GHz frequency range. It features gold-plated leaf springs for exceptional repeatability (0.01 dB typ., max 0.03 dB) and long life exceeding 5 million cycles per section. With a fast 20 ms switching time and low insertion loss (0.4 dB + 0.07 dB/GHz at 0 dB), it's ideal for automated test environments. SWR is as low as 1.35 up to 8 GHz, and the unit supports up to 1 W average/100 W peak power. Connector options include type-N, SMA, or APC-7, with programmable control via 12-pin Viking or optional 14-pin DIP.
Perfect for high-frequency signal path control in demanding test setups requiring reliability and precision.
Testwall can supply the used Keysight (Agilent) 8495H, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8495H.
