Keysight (Agilent)
Keysight (Agilent) 85020A
10MHz - 4.3GHz Directional Bridge
DC to 18 GHz Frequency Range
Type-N Connector Type
50 Ohm Impedance
Mechanical Calibration Kit Calibration Kit Type
Open, Short, Load, Thru Standards Included
| Attribute | Value |
|---|---|
| Frequency Range | DC to 18 GHz |
| Connector Type | Type-N |
| Impedance | 50 Ohm |
| Calibration Kit Type | Mechanical Calibration Kit |
| Standards Included | Open, Short, Load, Thru |
| Connector Gender | Male and Female |
| Maximum Power | 0.5 W Average |
| Compatible Instruments | Keysight Vector Network Analyzers (VNA) |
| Load Impedance | 50 Ohm Termination |
| Operating Temperature Range | 0°C to 55°C |
| Model | 85020A |
|---|

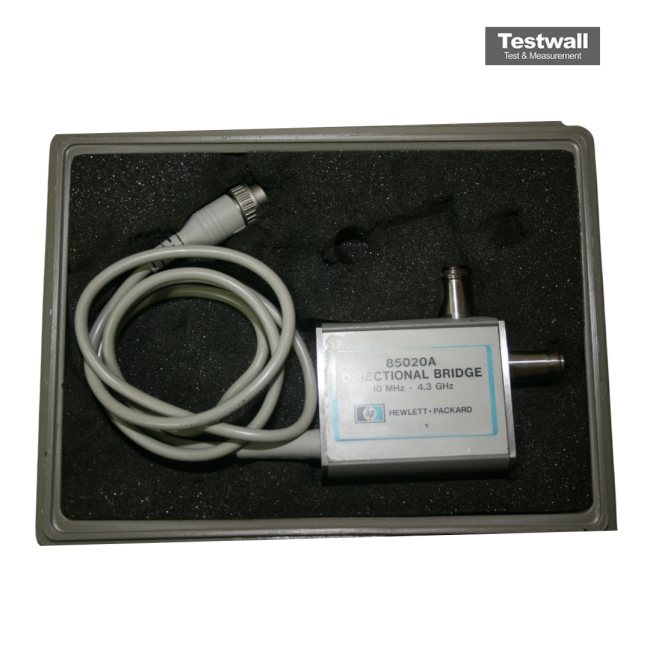

The Keysight (Agilent) 85020A is a used directional bridge designed for use with the 8757A, 8756A, and 8755C Scalar Network Analyzers. It features excellent directivity and test port match, covering frequencies from 10 MHz to 4.3 GHz using Type-N female connectors.
This unit includes a zero-bias Schottky diode detector to measure return loss, all within a compact, rugged design ideal for demanding test environments.
Testwall can supply the used Keysight (Agilent) 85020A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85020A.
