Keysight (Agilent) 85025A
10 MHz to 18 GHz Detector
10 MHz to 26.5 GHz Frequency Range
Broadband Coaxial Detector Detector Type
APC-3.5 (SMA Compatible) Connector Type
+23 dBm (200 mW) Maximum Input Power
0.5 mV/mW at 50 MHz Nominal Sensitivity
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Detector Type | Broadband Coaxial Detector |
| Connector Type | APC-3.5 (SMA Compatible) |
| Maximum Input Power | +23 dBm (200 mW) |
| Nominal Sensitivity | 0.5 mV/mW at 50 MHz |
| Video Resistance | 100 kΩ minimum |
| Impedance | 50 Ohm |
| VSWR | 1.4:1 maximum (10 MHz to 26.5 GHz) |
| Operating Temperature Range | 0°C to +55°C |
| Video Output Connector | BNC Female |
| Model | 85025A |
|---|

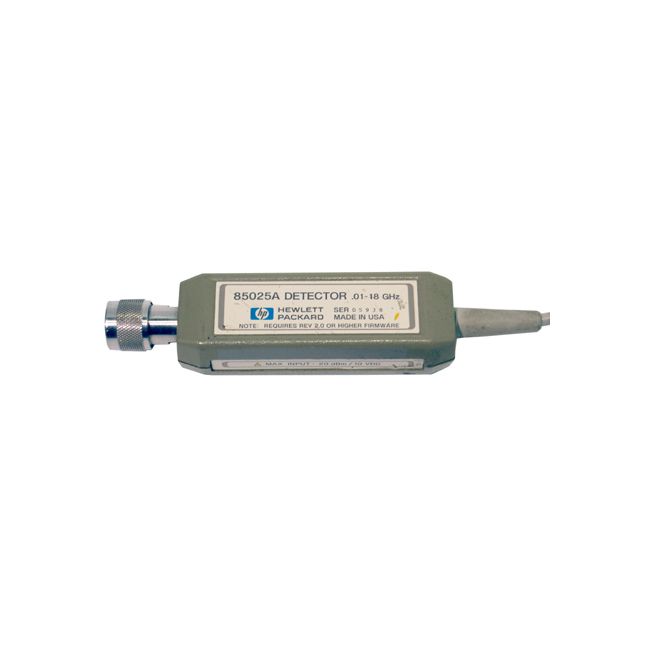

The Keysight (Agilent) 85025A is a broadband microwave detector designed specifically for use with the 8757D scalar network analyzer. It supports detection of both modulated (AC) and unmodulated (DC) microwave signals, making it versatile for various scalar measurement applications. The 85025A is not compatible with older analyzer models such as the 8756 or 8755, ensuring optimized performance when paired with the 8757D.
Engineered for reliability and accuracy, the 85025A delivers stable signal detection across a wide range of frequencies, supporting critical measurements in high-frequency test environments.
Testwall can supply the used Keysight (Agilent) 85025A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85025A.
