Keysight (Agilent)

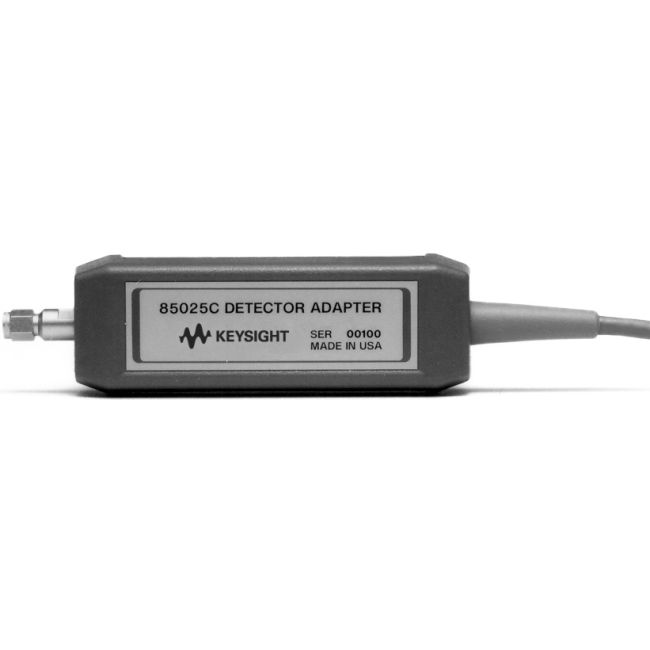

Keysight (Agilent) 85025C
Waveguide Detector Adapter 110GHz
DC to 26.5 GHz Frequency Range
Coaxial Schottky Diode Detector Detector Type
APC-3.5 (3.5 mm) Connector Type
50 Ohm Impedance
200 mW (23 dBm) Maximum Input Power
€3,450.00 excl. VAT + free EU delivery
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Detector Type | Coaxial Schottky Diode Detector |
| Connector Type | APC-3.5 (3.5 mm) |
| Impedance | 50 Ohm |
| Maximum Input Power | 200 mW (23 dBm) |
| Tangential Signal Sensitivity (TSS) | -53 dBm typical at 10 GHz |
| Video Resistance | 100 Ohm typical |
| Video Capacitance | 2 pF typical |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -40°C to +75°C |
Keysight (Agilent) 85025C Options:
- 85025C - K57 - 55-65 GHz, WR-15 detector
- 85025C - K71 - 90-100 GHz, WR-18 detector
| Model | 85025C |
|---|
The Keysight (Agilent) 85025C is a waveguide detector adapter designed for precision up to 110 GHz, operating with the Keysight 8757 in both AC and DC detection modes. It features a 3.5 mm(m) connector for stable high-frequency performance.
Ideal for advanced RF/microwave applications, it ensures accurate detection over a wide bandwidth in both modulation states.
Testwall can supply the used Keysight (Agilent) 85025C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85025C.
