Keysight (Agilent)
Keysight (Agilent) 85038F
Calibration Kit contains 7.5GHz (usable to 8GHz).
DC to 9 GHz Frequency Range
Type-F Connector Type
2-Port Number of Ports
Mechanical Calibration Kit Calibration Kit Type
Keysight Vector Network Analyzers (VNA) Compatible Instruments
| Attribute | Value |
|---|---|
| Frequency Range | DC to 9 GHz |
| Connector Type | Type-F |
| Number of Ports | 2-Port |
| Calibration Kit Type | Mechanical Calibration Kit |
| Compatible Instruments | Keysight Vector Network Analyzers (VNA) |
| Impedance | 75 Ohm |
| Standards Included | Open, Short, Load, Thru |
| Gender | Male and Female |
| Application | Cable Television (CATV) and Broadband Network Testing |
| Calibration Data | Included on USB Drive with Characterization Data |
Keysight (Agilent) 85038F Options:
- 85038F - 85038-80002 - Open circuit, female
- 85038F - 85038-80004 - Short circuit, female
- 85038F - 85038-80006 - Termination, female
- 85038F - 11906-80016 - 7-16 adapter, female-to-female
- 85038F - 85038-10001 - Calibration kit data disk
- 85038F - 11906A - 7-16 to 7-16 adapter kit
- 85038F - 11906B - 7-16 to 50-Ohm type-N adapter kit
- 85038F - 11906C - 7-16 to 7-mm adapter kit
- 85038F - 11906D - 7-16 to 3.5-mm adapter kit
| Model | 85038F |
|---|

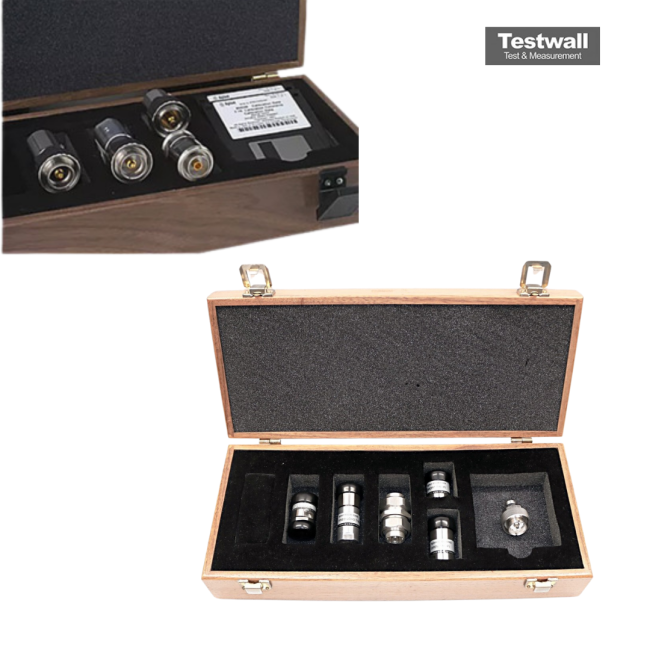

The Keysight (Agilent) 85038F calibration kit includes precision 7-16 female connectors—open, short, and load—with frequency coverage from DC to 7.5 GHz, usable up to 8 GHz. It ensures accurate calibration for high-performance RF measurements.
Designed for modern wireless systems, it supports low VSWR and low intermodulation distortion in high-power applications using 7-16 connectors as per IEC 169-4 and EN 122190 standards.
Testwall can supply the used Keysight (Agilent) 85038F, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85038F.
