Keysight (Agilent)
Keysight (Agilent) 85038M
Calibration Kit 7.5GHz (usable to 8GHz).
DC to 26.5 GHz Frequency Range
Type-N (m) Connector Type
50 Ohm Impedance
1.06 max at DC to 26.5 GHz VSWR
0.15 dB max at DC to 26.5 GHz Insertion Loss
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Connector Type | Type-N (m) |
| Impedance | 50 Ohm |
| VSWR | 1.06 max at DC to 26.5 GHz |
| Insertion Loss | 0.15 dB max at DC to 26.5 GHz |
| Power Handling | 0.5 W average |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -65°C to +125°C |
| Compatible Instrument | Keysight 8703B, 8720 Series, and other vector network analyzers |
| Calibration Kit Compatibility | 85033E/D, 85052B/D, 85054B/D calibration kits |
Keysight (Agilent) 85038M Options:
- 85038M - 11906A - 7-16 to 7-16 adapter kit
- 85038M - 11906B - 7-16 to 50-Ohm type-N adapter kit
- 85038M - 11906C - 7-16 to 7-mm adapter kit
- 85038M - 11906D - 7-16 to 3.5-mm adapter kit
- 85038M - 11906-80015 - 7-16 male-to-male adapter
- 85038M - 11906-80016 - 7-16 female-to-female adapter
- 85038M - 11906-80017 - 7-16 male-to-female adapter
- 85038M - 11906-80007 - Type-N male to 7-16 male adapter
- 85038M - 11906-80008 - Type-N female to 7-16 female adapter
- 85038M - 11906-80009 - Type-N female to 7-16 male adapter
- 85038M - 11906-80010 - Type-N male to 7-16 female adapter
- 85038M - 11906-80012 - 7-mm to 7-16 male adapter
- 85038M - 11906-80013 - 7-mm to 7-16 female adapter
- 85038M - 11906-80002 - 3.5-mm male to 7-16 male adapter
- 85038M - 11906-80005 - 3.5-mm male to 7-16 female adapter
- 85038M - 11906-80004 - 3.5-mm female to 7-16 male adapter
- 85038M - 11906-80003 - 3.5-mm female to 7-16 female adapter
| Model | 85038M |
|---|

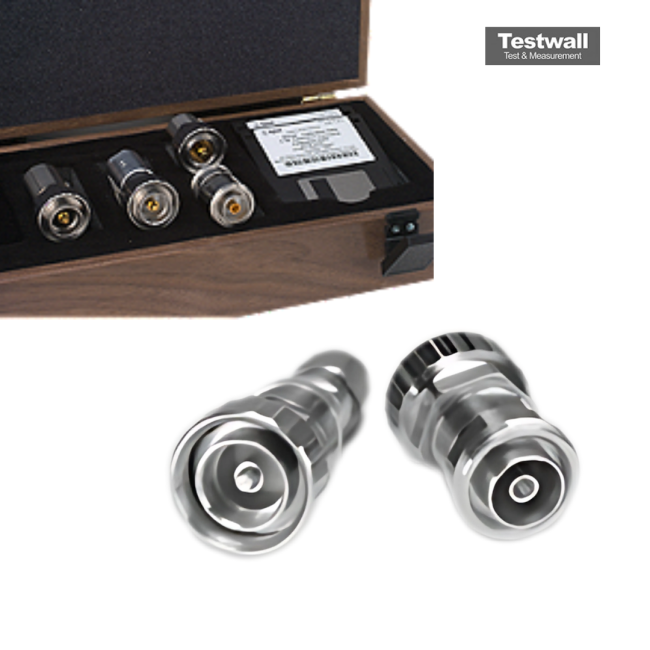

The Keysight (Agilent) 85038M calibration kit includes male open, short, and load devices with a DC to 7.5 GHz frequency range (usable up to 8 GHz). It supports precision measurements with 7-16 male connectors.
This kit ensures reliable calibration for modern wireless systems using 7-16 connectors, conforming to IEC 169-4, DIN 47223, EN 122190, and BSEN 122190 standards.
Testwall can supply the used Keysight (Agilent) 85038M, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85038M.
