Keysight (Agilent) 85130G
| Attribute | Value |
|---|---|
| Cable Type | NMD 3.5mm to Type-N Adapter Cable |
| Cable Length | 24 inches (610 mm) |
| Frequency Range | DC to 26.5 GHz |
| Connector Interface (End 1) | 3.5mm (m) |
| Connector Interface (End 2) | Type-N (m) |
| Impedance | 50 Ohm |
| VSWR | 1.4:1 maximum |
| Insertion Loss | 0.8 dB maximum at 26.5 GHz |
| Compatible Systems | Keysight 8510, 8753, and PNA Series Network Analyzers |
| Cable Construction | Flexible, low-loss microwave coaxial cable with stainless steel armoring |
| Model | 85130G |
|---|

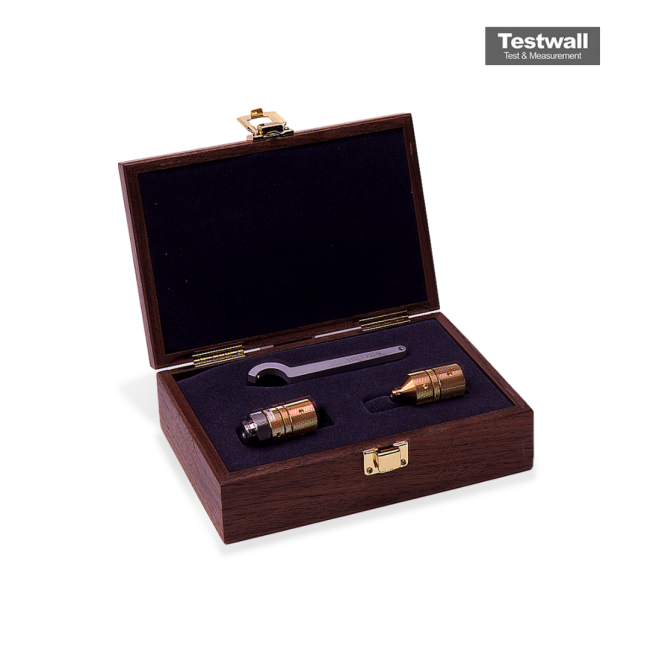

The Keysight (Agilent) 85130G Test Port Adapter Set includes two precision adapters designed to protect the network analyzer test port and ensure high-performance measurements up to 50 GHz. It features rugged NMD-2.4 mm connectors: one NMD-2.4 mm (f) to NMD-2.4 mm (m), and another NMD-2.4 mm (f) to PSC-2.4 mm (f), with a return loss of 23 dB or better.
This set enables seamless connection between the analyzer and device under test, while torque wrenches ensure secure and accurate connections. Use of 2.4 mm to 2.92 mm adapters reduces range to 40 GHz.
Testwall can supply the used Keysight (Agilent) 85130G, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85130G.
