Keysight (Agilent) 85131D
| Attribute | Value |
|---|---|
| Cable Type | Flexible Test Port Cable |
| Connector Interface | 3.5mm (m) to 3.5mm (m) |
| Frequency Range | DC to 26.5 GHz |
| Cable Length | 24 inches (610 mm) |
| Impedance | 50 Ohm |
| Compatible Instruments | Keysight PNA, ENA, and 8719/8720/8722/8753 Series Network Analyzers |
| Cable Construction | Flexible, phase-stable coaxial cable |
| VSWR (Maximum) | 1.4:1 (DC to 26.5 GHz) |
| Insertion Loss (Maximum) | 3.5 dB at 26.5 GHz |
| Operating Temperature Range | 0°C to +55°C |
| Model | 85131D |
|---|

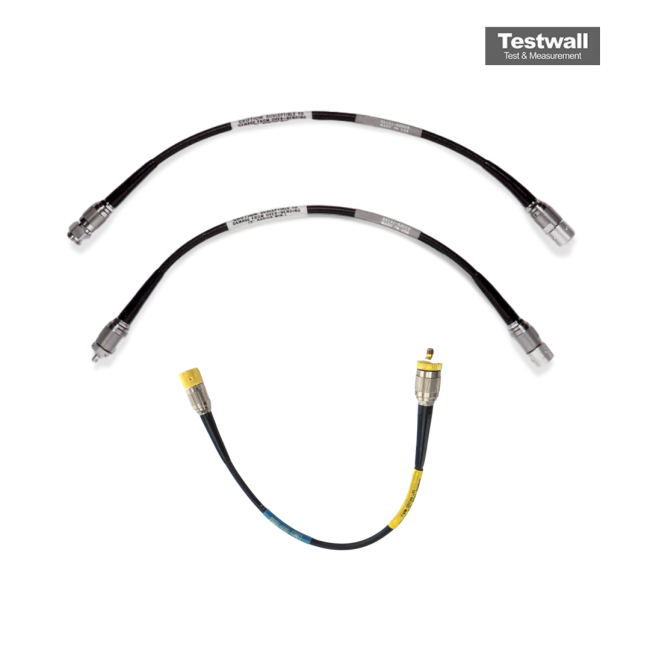

The Keysight (Agilent) 85131D is a 53 cm (21 in) semi-rigid cable set featuring one 3.5 mm female to PSC-3.5 mm female connector and one 3.5 mm female to 3.5 mm male connector. It operates from DC to 26.5 GHz, with a return loss of 16 dB or better. Insertion loss is calculated as 0.3 * √f + 0.2 dB, and 1.8 dB max at the device end. Phase stability is under 0.06 dB with a bend radius of 4 to 3 inches.
This cable ensures excellent stability and performance, with phase deviation defined by 0.16 * f + 0.5. Designed specifically for network analyzer ports, it features a rugged female connector for high-reliability setups.
Testwall can supply the used Keysight (Agilent) 85131D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85131D.
