Keysight (Agilent)
Keysight (Agilent) 85131E
3.5mm (f) Flexible Cable, DC-26.5GHz
Flexible Test Port Cable Cable Type
3.5mm (m) to 3.5mm (m) Connector Type
DC to 26.5 GHz Frequency Range
24 inches (610 mm) Cable Length
50 Ohm Impedance
| Attribute | Value |
|---|---|
| Cable Type | Flexible Test Port Cable |
| Connector Type | 3.5mm (m) to 3.5mm (m) |
| Frequency Range | DC to 26.5 GHz |
| Cable Length | 24 inches (610 mm) |
| Impedance | 50 Ohm |
| Compatible Instruments | Keysight PNA, ENA, and 8510 Series Network Analyzers |
| Cable Construction | Flexible, phase-stable coaxial cable |
| VSWR (Typical) | 1.3:1 maximum |
| Insertion Loss (Typical) | Less than 1.5 dB at 26.5 GHz |
| Operating Temperature Range | 0°C to +55°C |
| Model | 85131E |
|---|

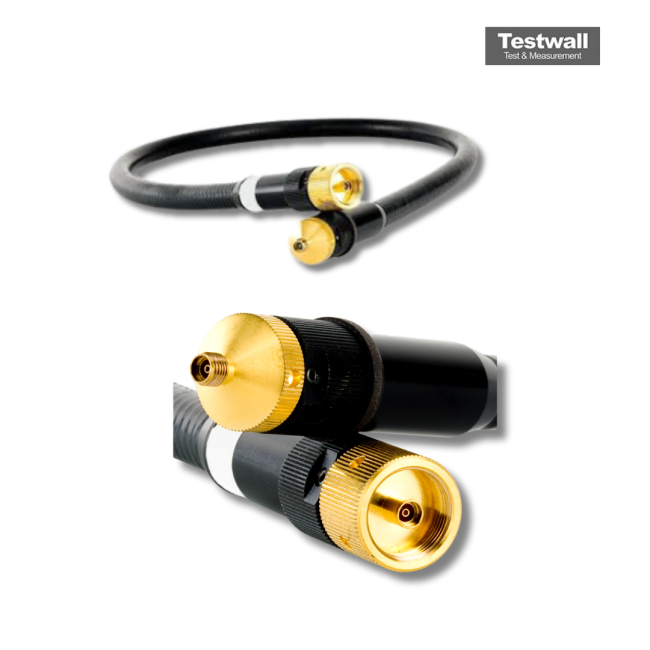

The Keysight (Agilent) 85131E is a 96.5 cm (38 in) flexible microwave test cable with a 3.5 mm female to PSC-3.5 mm female connector, engineered for high-frequency applications up to 26.5 GHz. It offers excellent return loss performance (≥16 dB) and low insertion loss defined by 0.35√f + 0.3 (test port) and 2.1 dB maximum (device end). The cable's flexible design ensures consistent performance in tight test setups.
With phase stability under 0.22 dB and phase shift of 0.16*f + 0.8° (f in GHz) under a 90° bend (4" to 3" radius), the 85131E is ideal for precision measurements where repeatability and low signal distortion are critical.
Testwall can supply the used Keysight (Agilent) 85131E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85131E.
