Keysight (Agilent) 85132E
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Connector Type | 3.5 mm to Type-N Adapter Kit |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.25 (DC to 18 GHz), ≤ 1.35 (18 to 26.5 GHz) |
| Insertion Loss | ≤ 0.3 dB (DC to 18 GHz), ≤ 0.4 dB (18 to 26.5 GHz) |
| Power Handling | 0.5 W average |
| Kit Contents | Male-to-Male and Female-to-Female 3.5 mm to Type-N adapters |
| Compatibility | Compatible with Keysight vector network analyzers and RF test systems |
| Operating Temperature | 0°C to +55°C |
| Material | Stainless Steel Body with Gold-Plated Contacts |
| Model | 85132E |
|---|

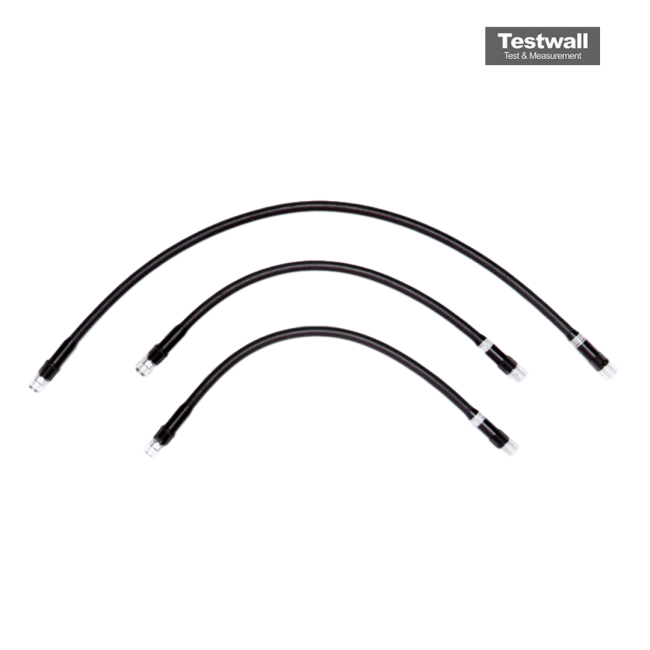

The Keysight (Agilent) 85132E is a 97.2 cm flexible cable featuring a 3.5 mm female to 7 mm female connector, supporting a frequency range from DC to 18 GHz. It offers 17 dB or better return loss and insertion loss of 0.35 * f + 0.3 dB (test port) and 1.8 dB max (device). Phase stability is 0.16 * f + 0.8 with < 0.22 dB signal loss.
This high-performance cable is specifically designed for network analyzer connections, offering robustness and precision in tight setups with bend stability tested under 90° using a 4 to 3 inch radius.
Testwall can supply the used Keysight 85132E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 85132E.
