Keysight (Agilent) 85135F
| Attribute | Value |
|---|---|
| Frequency Range | DC to 50 GHz |
| Connector Type | 2.4 mm |
| Impedance | 50 Ohm |
| Compatible Instruments | Keysight PNA, PNA-L, PNA-X, ENA Series Network Analyzers |
| Calibration Kit Type | Mechanical Calibration Kit |
| Standards Included | Open, Short, Load, Thru |
| Gender | Male and Female Standards |
| Maximum Input Power | 0.5 W (Average) |
| Operating Temperature | 0°C to 55°C |
| Calibration Data | Coefficient Data Included on USB Flash Drive |
| Model | 85135F |
|---|

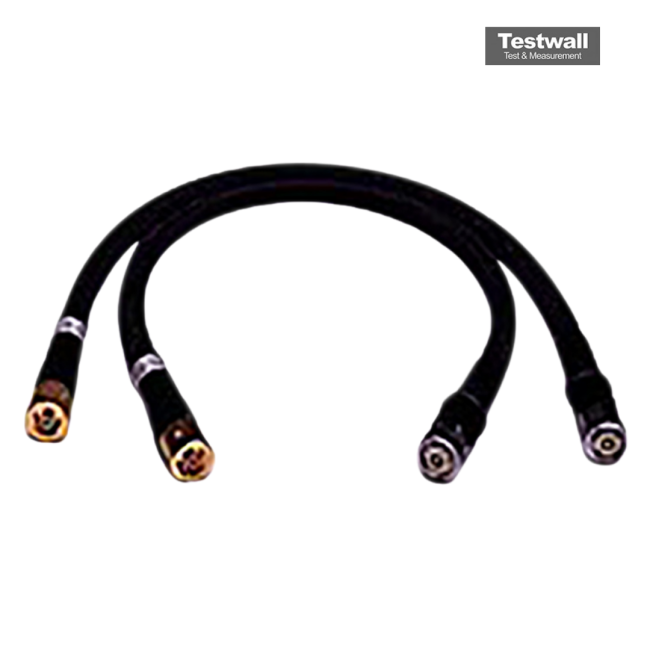

The Keysight (Agilent) 85135F cable set is a 62.9 cm (24.75 in) long flexible pair featuring 2.4 mm female to 7 mm connectors. Designed for precision testing, it supports frequencies from DC to 18 GHz, offering a return loss of 17 dB or better. The insertion loss is 0.3√f + 0.2 (GHz), and the phase variation is 0.13f + 0.5 (GHz). Phase stability under a 90° bend with a 4–3 inch radius remains under 0.12 dB, ensuring high test repeatability.
Optimized for use with network analyzers, the rugged 2.4 mm female connector mates directly with test ports and ensures a reliable interface. The device connector provides up to 1.5 dB insertion loss at 18 GHz.
Testwall can supply the used Keysight (Agilent) 85135F, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85135F.
