Keysight (Agilent) 86101A
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz Optical / 65 GHz Electrical |
| Wavelength Range | 750 nm to 1650 nm |
| Input Connector Type | Single-mode and Multimode Fiber (FC/PC) |
| Timebase Accuracy | ±1 ppm |
| Vertical Scale Range | 1 mV/div to 1 V/div (Electrical); 0.1 mW/div to 10 mW/div (Optical) |
| Maximum Optical Input Power | +10 dBm average |
| Trigger Bandwidth | 3.2 GHz |
| Data Rate Support | Up to 43 Gb/s |
| Module Compatibility | Keysight 86100 Series Mainframe (DCA-J) |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies 86101A Options:
- 86101A - Option 201 - OC-3/STM-1 (155 Mb/s), OC-12/STM-4 (622 Mb/s)
- 86101A - Option 202 - FC (1.063 Gb/s), GBEN (1.25 Gb/s)
- 86101A - Option 011 - Diamond HMS-10 Connector Interface
- 86101A - Option 012 - FC/PC Connector Adapter
- 86101A - Option 013 - DIN Connector Adapter
- 86101A - Option 014 - ST Connector Adapter
- 86101A - Option 017 - SC Connector Adapter
- 86101A - Option W30 - 3 years of customer return repair service
- 86101A - Option W32 - 3 years of customer return calibration service
- 86101A - Option W50 - 5 years of customer return repair service
- 86101A - Option W52 - 5 years of customer return calibration service
| Model | 86101A |
|---|

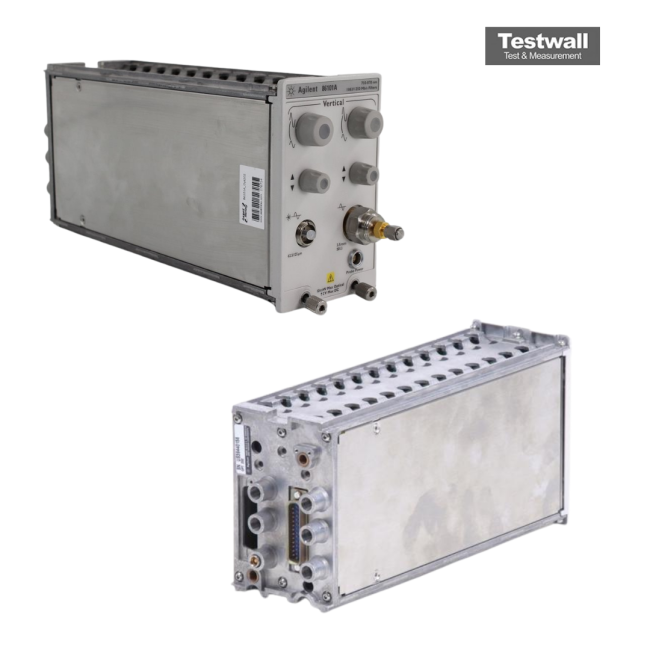

The Keysight (Agilent) 86101A is a versatile optical and electrical measurement module ideal for testing high-speed signals up to 1.250 Gb/s. It features a 2.8 GHz bandwidth optical channel with an integrated receiver, covering wavelengths from 750–860 nm. It also includes a 20 GHz electrical channel with 3.5 mm input and low rms noise levels for precision measurements.
The module includes built-in average power meter and switchable reference receiver filters for Fibre Channel and Gigabit Ethernet, supporting compliance testing and reducing setup time.
Testwall can supply the used Keysight (Agilent) 86101A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86101A.
