Keysight (Agilent) 86102A
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Rise Time | 17.5 ps |
| Number of Channels | 2 Electrical Channels |
| Input Impedance | 50 Ohms |
| Timebase Range | 10 ps/div to 2 s/div |
| Vertical Sensitivity Range | 10 mV/div to 200 mV/div |
| Maximum Input Voltage | ±2 V (DC + Peak AC) |
| Connector Type | 2.4 mm (m) RF Connector |
| Compatible Mainframe | Keysight 86100 Series Infiniium DCA Wide-Bandwidth Oscilloscope |
| Wavelength Range | N/A (Electrical Module Only) |
Keysight Technologies 86102A Options:
- 86102A - 201 - 2.125, 3.187 Gb/s filtered data rates
- 86102A - 202 - 2.488, 3.125 Gb/s filtered data rates
- 86102A - 203 - 2.72, 3.32 Gb/s filtered data rates
| Model | 86102A |
|---|

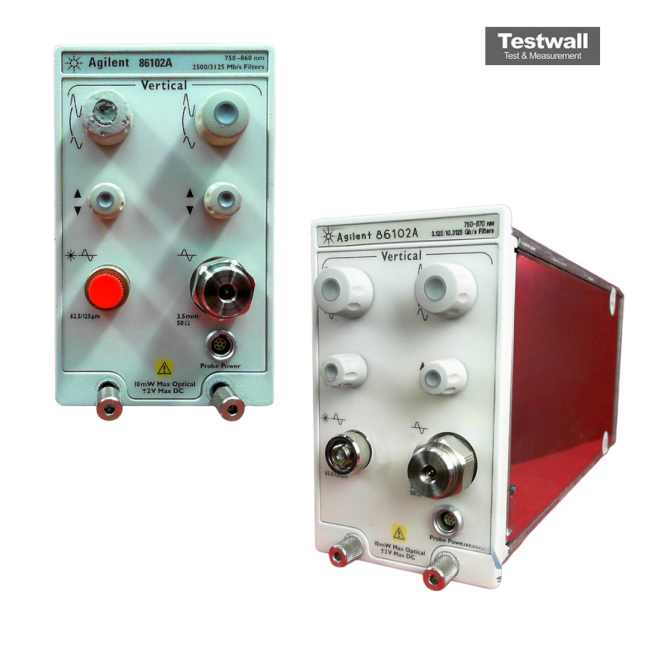

The Keysight (Agilent) 86102A multimode optical module features a 10 GHz amplified optical channel, optimized for 62.5/125 fibers within a 750–860 nm wavelength range. It provides high sensitivity and low noise performance, with 3.4 µW rms noise for optical and 0.25–0.5 mV rms noise for electrical. A 20 GHz electrical channel with ±2 Vdc input adds versatility.
Ideal for VSR optics applications, the 86102A supports reference receiver capabilities across multiple data rates and integrates seamlessly with 86100A/B/C DCA mainframes.
Testwall can supply the used Keysight (Agilent) 86102A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86102A.
