Keysight (Agilent) 86103A
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 1100 nm to 1600 nm |
| Electrical Bandwidth | DC to 20 GHz |
| Optical Bandwidth | 20 GHz |
| Input Connector Type | FC/PC Optical Connector |
| Conversion Gain | 700 V/W typical |
| Noise Equivalent Power (NEP) | 6 pW/√Hz typical |
| Maximum Input Power | +3 dBm average optical power |
| Compatible Mainframe | Keysight 86100 Series Digital Communications Analyzer (DCA) |
| Module Type | Optical/Electrical Plug-In Module |
| Calibration | NIST Traceable Calibration Included |
Keysight Technologies 86103A Options:
- 86103A - Option 201 - OC-3/STM-1 (155 Mb/s), OC-12/STM-4 (622 Mb/s)
- 86103A - Option 202 - FC (1.063 Gb/s), GBEN (1.25 Gb/s)
- 86103A - Option 011 - Diamond HMS-10 Connector Interface
- 86103A - Option 012 - FC/PC Connector Adapter
- 86103A - Option 013 - DIN Connector Adapter
- 86103A - Option 014 - ST Connector Adapter
- 86103A - Option 017 - SC Connector Adapter
- 86103A - Option W30 - 3 years of customer return repair service
- 86103A - Option W32 - 3 years of customer return calibration service
- 86103A - Option W50 - 5 years of customer return repair service
- 86103A - Option W52 - 5 years of customer return calibration service
| Model | 86103A |
|---|

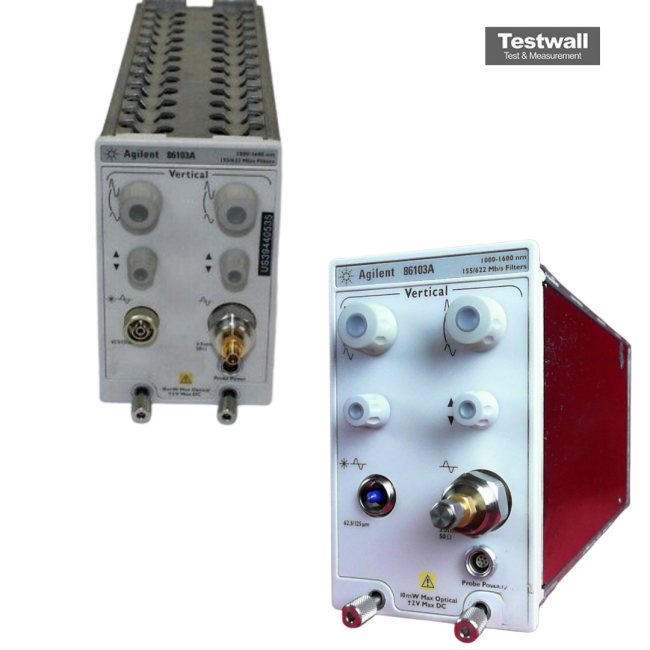

The Keysight (Agilent) 86103A is engineered for accurate testing of SDH/SONET, Fibre Channel, and Gigabit Ethernet signals at rates of 155 Mb/s to 1250 Mb/s. It features a 2.8 GHz optical channel supporting single-mode and multimode fiber, with wavelength range 1000–1600 nm and integrated calibrated receiver for precision measurement.
Equipped with a 20 GHz electrical channel and switchable hardware filters, the 86103A minimizes setup time while ensuring repeatable, reliable compliance testing with Infiniium DCA compatibility.
Testwall can supply the used Keysight (Agilent) 86103A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86103A.
