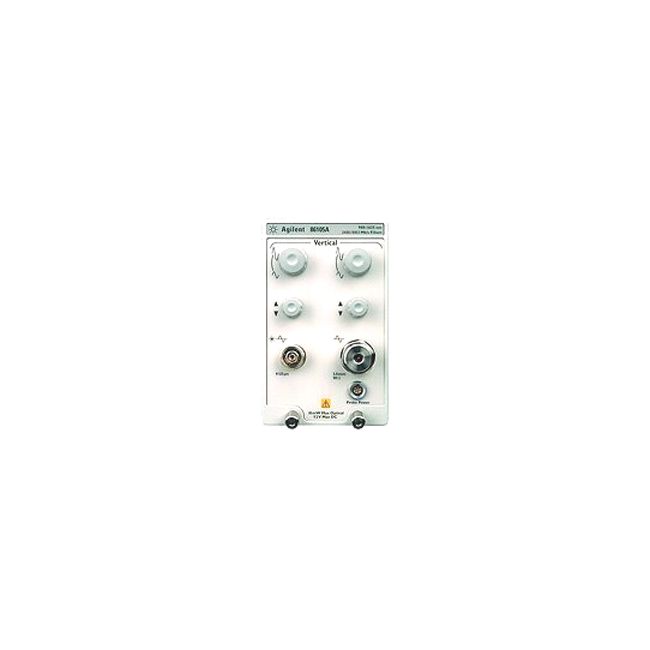

Keysight (Agilent) 86105A
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 700 nm to 1650 nm |
| Electrical Bandwidth | DC to 20 GHz |
| Optical Bandwidth (-3 dB) | 15 GHz |
| Input Connector Type | Single-mode and multimode fiber (FC/PC connector) |
| Optical Input Power Range | -20 dBm to +3 dBm average power |
| Module Compatibility | Keysight 83480A and 54750A mainframes |
| Rise Time (Optical) | Less than 25 ps (10% to 90%) |
| Transimpedance | 430 V/A (typical) |
| Detector Type | Integrated photodetector (PIN photodiode) |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 86105A Options:
- 86105A - Option 101 - OC-3/STM-1 (155 Mb/s)
- 86105A - Option 102 - OC-12/STM-4 (622 Mb/s)
- 86105A - Option 103 - OC-48/STM-16 (2.488 Gb/s)
- 86105A - Option 201 - OC-12/STM-4 (622 Mb/s), OC-48/STM-16 (2.488 Gb/s)
- 86105A - Option 202 - OC-48/STM-16 (2.488 Gb/s), OC-192/STM-64 (9.953 Gb/s)
- 86105A - Option 011 - Diamond HMS-10 Connector Interface
- 86105A - Option 012 - FC/PC Connector Adapter
- 86105A - Option 013 - DIN Connector Adapter
- 86105A - Option 014 - ST Connector Adapter
- 86105A - Option 017 - SC Connector Adapter
- 86105A - Option W30 - 3 years of customer return repair service
- 86105A - Option W32 - 3 years of customer return calibration service
- 86105A - Option W50 - 5 years of customer return repair service
- 86105A - Option W52 - 5 years of customer return calibration service
| Model | 86105A |
|---|
The Keysight (Agilent) 86105A features dual measurement channels: one optical and one electrical, each with 12.4 GHz and 20 GHz selectable bandwidths. The optical channel includes switchable filters for SDH/SONET compliance at data rates from 155 Mb/s to 9.953 Gb/s and offers calibration at 1310 nm and 1550 nm. The 20 GHz electrical input accepts signals up to ±2 Vdc with low rms noise.
This module is ideal for analyzing high-speed optical waveforms, evaluating transceiver performance, and testing with external optical receivers, supporting 1000-1600 nm wavelengths.
Testwall can supply the used Keysight (Agilent) 86105A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86105A.
