Keysight (Agilent)

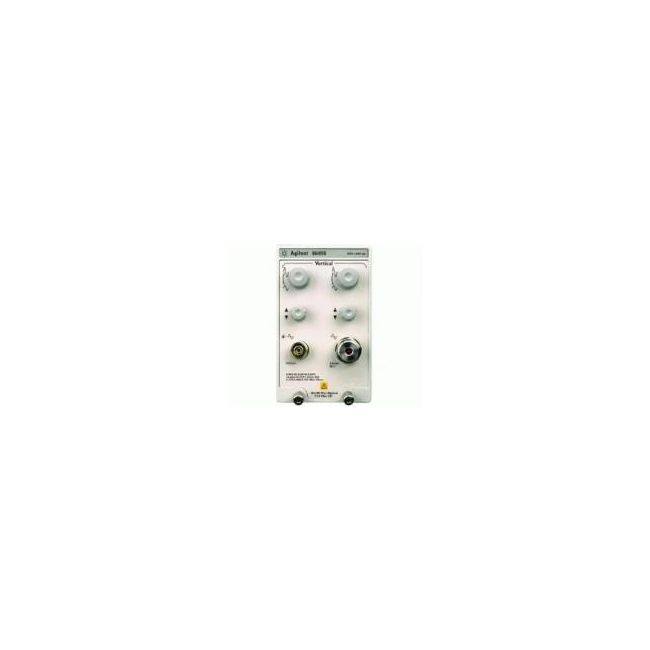

Keysight (Agilent) 86105B
Optical Module
750 nm to 1650 nm Optical Wavelength Range
20 GHz Electrical Bandwidth
15 GHz Optical Bandwidth
26 ps Rise Time (Optical)
17.5 ps Rise Time (Electrical)
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 750 nm to 1650 nm |
| Electrical Bandwidth | 20 GHz |
| Optical Bandwidth | 15 GHz |
| Rise Time (Optical) | 26 ps |
| Rise Time (Electrical) | 17.5 ps |
| Input Connector Type | Single-mode and multimode fiber optic input with FC/PC connector |
| Electrical Input Impedance | 50 Ohm |
| Module Compatibility | Compatible with Keysight 86100 series Digital Communications Analyzer (DCA) mainframes |
| Optical Input Power Range | -20 dBm to +3 dBm average power |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies 86105B Options:
- 86105B - 101 - Filter coverage for OC-192, 10GbE, 10x Fibre Channel, OC-192 (FEC), OC-192 (ITU-T G.709)
- 86105B - 102 - Filter coverage for OC-48, 2xGbE, InfiniBand, OC-48 (FEC), OC-192, 10GbE, 10x Fibre Channel, OC-192 (FEC), OC-192 (ITU-T G.709)
- 86105B - 103 - Filter coverage for OC-3, OC-12, Fibre Channel, GbE, 2x Fibre Channel, OC-48, 2xGbE, InfiniBand, OC-192, 10GbE, 10x Fibre Channel, OC-192 (FEC), OC-192 (ITU-T G.709)
| Model | 86105B |
|---|
The Keysight (Agilent) 86105B enables comprehensive transmitter compliance testing across SONET, Ethernet, and Fibre Channel technologies with data rates from 155 Mb/s to 10 Gb/s using one versatile module.
It offers a 15 GHz optical channel for 9/125 fibers, a 20 GHz electrical channel, and compatibility with 86100A/B/C Infiniium DCA/DCA-J Mainframes, delivering accurate mask testing and noise performance.
Testwall can supply the used Keysight (Agilent) 86105B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86105B.
