Keysight (Agilent) 86120C
| Attribute | Value |
|---|---|
| Wavelength Range | 700 nm to 1650 nm |
| Wavelength Accuracy | ±0.001 nm (absolute) |
| Wavelength Resolution | 0.0001 nm |
| Number of Lasers Measured Simultaneously | Up to 40 lasers |
| Optical Power Range | -40 dBm to +10 dBm |
| Power Accuracy | ±0.5 dB |
| Minimum Laser Linewidth Measurement | 0.0001 nm (100 MHz) |
| Input Connector Type | FC/PC single-mode fiber connector |
| Display | Built-in CRT display with graphical user interface |
| Interface | GPIB (IEEE-488) and RS-232 |
Keysight Technologies 86120C Options:
- 86120C - 012 - FC Connector (default)
- 86120C - 013 - DIN Connector
- 86120C - 014 - ST Connector
- 86120C - 017 - SC Connector
- 86120C - 020 - Straight (non-angled) Contact Interface-PC
- 86120C - 022 - Angled Contact Interface-APC
- 86120C - 412 - Fixed External 10 dB Attenuator with FC/PC Connector (must be ordered with 86120x-020 option)
- 86120C - 417 - Fixed External 10 dB Attenuator with FC/APC Connector (must be ordered with 86120x-022 option)
- 86120C - AXE - Rack Flange Kit with Handles
- 86120C - IA4 - Rack Flange Kit without Handles
- 86120C - UK5 - Nylon Carrying Case with Shoulder Strap
- 86120C - UK6 - Commercial Calibration Certificate with Test Data
- 86120C - UK7 - Hard Carrying Case
- 86120C - ABA - English Operation Manual (default)
- 86120C - OBO - Do not include an Operation Manual
| Model | 86120C |
|---|

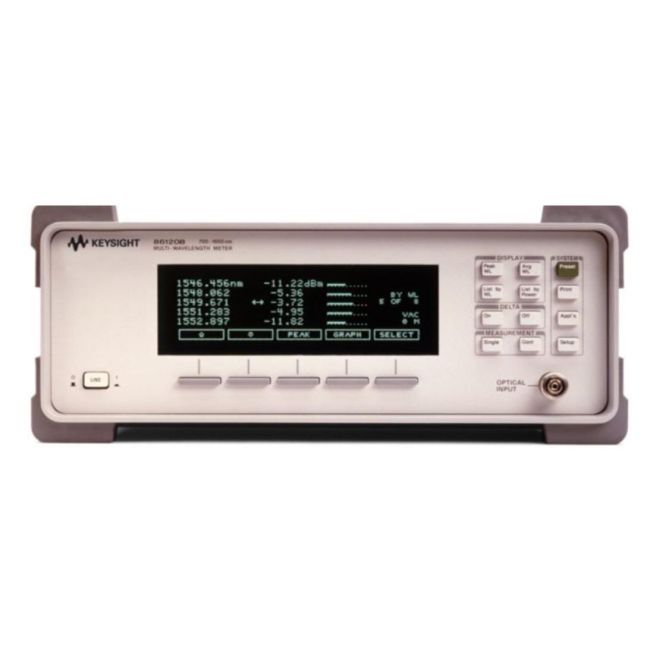

The Keysight (Agilent) 86120C Multi-Wavelength Meter uses Michelson interferometry for precise wavelength and optical power measurements of laser sources from 1270–1650 nm. It supports up to 200 laser lines and delivers ±2 ppm accuracy with a scan time of less than 1 second.
Ideal for DWDM systems, it measures multiple laser lines simultaneously, with high input power up to 10dBm and a built-in HeNe standard ensuring accurate, real-time results.
Testwall can supply the used Keysight (Agilent) 86120C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86120C.
