Keysight (Agilent) 86120D
| Attribute | Value |
|---|---|
| Wavelength Range | 700 nm to 1650 nm |
| Number of Optical Inputs | Up to 4 optical inputs (with optional multiplexer) |
| Wavelength Accuracy | ±0.001 nm (relative), ±0.3 nm (absolute) |
| Wavelength Resolution | 0.0001 nm |
| Minimum Wavelength Separation | 0.2 nm |
| Power Range | -90 dBm to +20 dBm |
| Power Accuracy | ±0.5 dB |
| Measurement Speed | Up to 2 measurements per second (single channel) |
| Interface | GPIB, RS-232 |
| Display | Built-in LCD display with wavelength and power readout |
Keysight (Agilent) 86120D Options:
- 86120D - 021 - Straight (non-angled) connector interface-PC
- 86120D - 022 - Angled contact interface-APC
- 86120D - UK6 - Commercial calibration certificate with test data
| Model | 86120D |
|---|

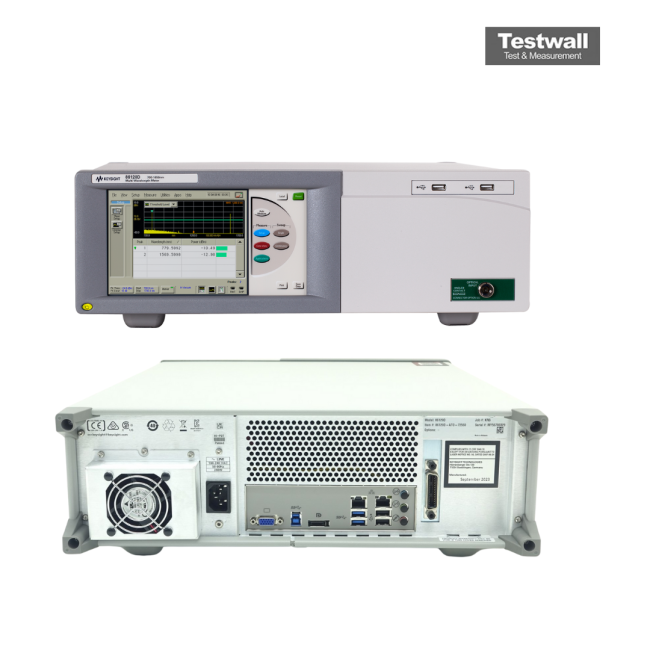

The Keysight (Agilent) 86120D Multi-Wavelength Meter is designed for high-precision measurement of light sources from 700 nm to 1700 nm. It delivers ±1.5 ppm accuracy (typical ±1 ppm) and rapid 0.6-second cycle time, making it perfect for fast automated wavelength tuning. It operates using a Michelson interferometer and built-in HeNe laser for exact wavelength readings.
This meter supports simultaneous multiple laser line readings, DWDM, and Fabry-Perot lasers, with broadband mode for wider line centers. It offers +18 dBm safe input and operates from 0°C to 55°C with only 15 minutes of warm-up.
Testwall can supply the used Keysight (Agilent) 86120D Multi-Wavelength Meter, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86120D Multi-Wavelength Meter.
