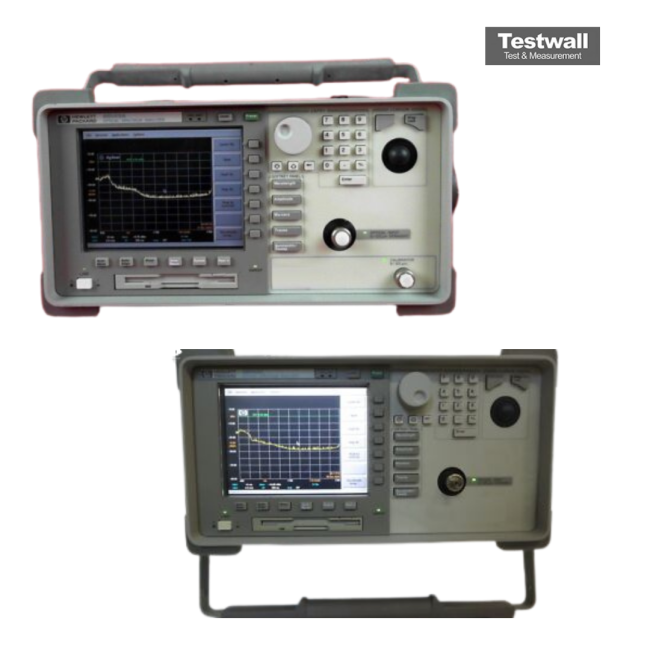

Keysight (Agilent) 86143A
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1700 nm |
| Wavelength Accuracy | ±0.1 nm |
| Wavelength Resolution | 0.06 nm |
| Dynamic Range | 70 dB |
| Sensitivity | -90 dBm |
| Power Range | +20 dBm to -90 dBm |
| Display Range | 0.2 nm to 1100 nm span |
| Optical Input Connector | FC/PC Connector |
| Interface | GPIB (IEEE-488) |
| Power Requirements | 100-240 VAC, 50/60 Hz |
Keysight Technologies 86143A Options:
- 86143A - 006 - Wavelength Calibrator
- 86143A - 011 - Alternative Connector Interface HMS-10
- 86143A - 013 - Alternative Connector Interface DIN
- 86143A - 014 - Alternative Connector Interface ST
- 86143A - 017 - Alternative Connector Interface SC
- 86143A - 025 - Multimode Fiber Input (50 µm multimode input)
- 86143A - 030 - External 10 dB Attenuator (FC/PC)
- 86143A - 042 - Soft Carrying Case
| Model | 86143A |
|---|
The Keysight (Agilent) 86143B is a compact optical spectrum analyzer tailored for 50 GHz WDM systems, offering built-in test applications, 10 pm wavelength accuracy, and rapid dual-sweep capabilities. It supports S, C, and L bands in a portable 31 lbs unit with a 12.8'' x 16.8'' footprint.
Ideal for high-level system installations, it excels in both factory and field environments, delivering precise characterization of optical sources and broadband components.
Testwall can supply the used Keysight (Agilent) 86143B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86143B.
