Keysight (Agilent)
Keysight (Agilent) 87075B
300 kHz to 3 GHz Frequency Range
6 ports Number of Ports
Less than 2.5 dB typical Insertion Loss
Less than 1.5:1 typical VSWR
Type-N (female) Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 6 ports |
| Insertion Loss | Less than 2.5 dB typical |
| VSWR | Less than 1.5:1 typical |
| Connector Type | Type-N (female) |
| Switch Configuration | Multiport coaxial switch, SP6T (Single Pole Six Throw) |
| Switching Speed | Less than 20 ms typical |
| Control Interface | TTL/CMOS compatible control lines |
| Power Requirements | +5V DC, +15V DC, -15V DC |
| Isolation | Greater than 70 dB typical at 1 GHz |
| Model | 87075B |
|---|

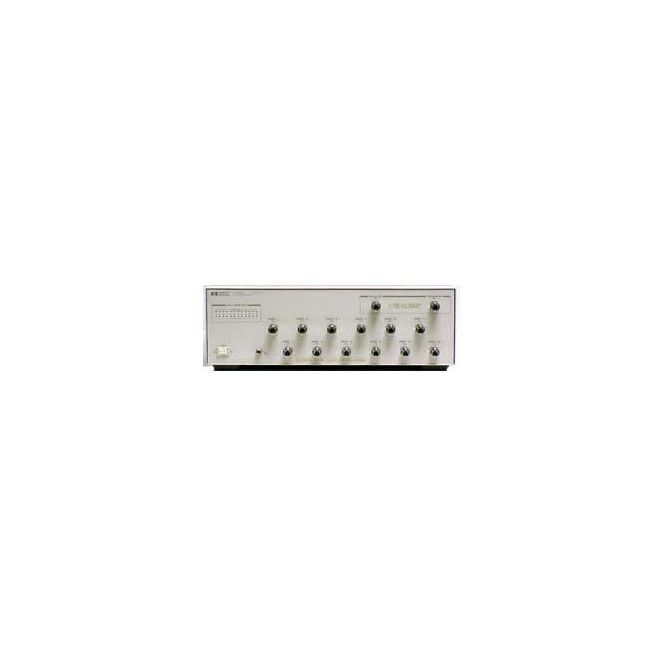

The Keysight (Agilent) 87075B Multiport Test Set features 75-ohm solid-state switching and allows multiple signal path testing with a single DUT connection, minimizing fatigue and reducing wear on equipment.
Ideal for wireless, broadband, and cable-television components with three or more ports, simplifying high-volume characterization with two-port network analyzers.
Testwall can supply the used Keysight (Agilent) 87075B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87075B.
