Keysight (Agilent) 87104C
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Number of Ports | 4 |
| Insertion Loss | 5.5 dB typical |
| Isolation | 90 dB typical |
| Switching Speed | 15 ms typical |
| Power Handling | +27 dBm (0.5 W) maximum |
| Connector Type | SMA (female) |
| Control Interface | TTL, positive logic |
| Operating Temperature | 0°C to +55°C |
| VSWR | 1.8:1 typical |
| Model | 87104C |
|---|

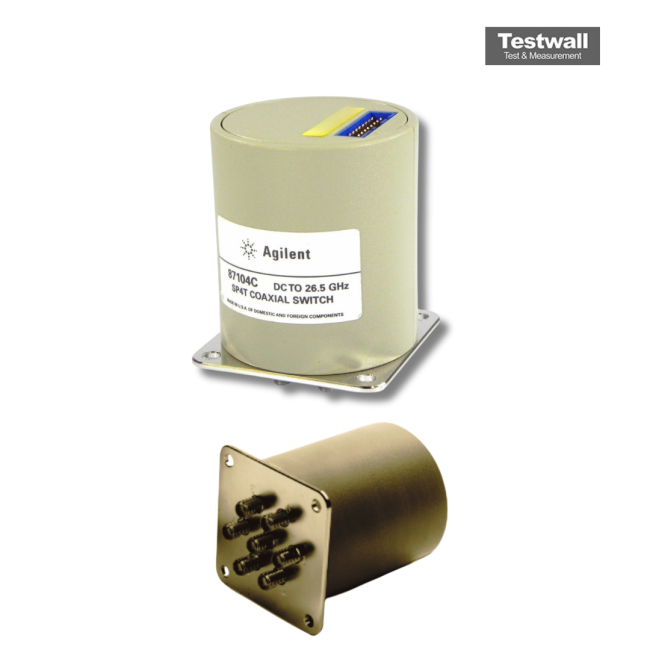

The Keysight (Agilent) 87104C is a terminated SP4T multiport switch offering excellent isolation (>90 dB to 26.5 GHz) and low insertion loss repeatability (0.03 dB up to 5 million cycles). Designed with magnetic latching and opto-electronic indicators, it guarantees high switching accuracy over a 10 million cycle life span.
Ideal for automated test systems, signal routing, and monitoring, the 87104C enhances reliability by reducing calibration needs and improving uptime through consistent performance.
Testwall can supply the used Keysight (Agilent) 87104C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87104C.
